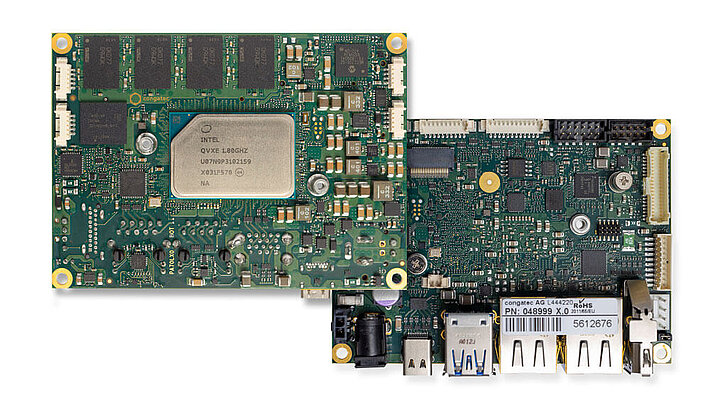

conga-PA7 - 2.5" Pico-ITX SBC with Intel Elkhart Lake

Distec presents the conga-PA7, an industrial 2.5" SBC for demanding applications in extended temperature range from -40° to +85°C. Long-term available Intel® processors of the Atom™ x6000E, Pentium® and Celeron® J / N series are available for selection. The processors of the Elkhart Lake series impress with their twice as fast graphics compared to their predecessors and a impressing 50% more multi-thread performance on up to four cores. The computer board measures just 100x72mm and offers a fast and cost-efficient entry into application development due to its low power consumption.

For fanless operation, a heatsink or a heatspreader are available for integration into the existing cooling concept. The conga-PA7 supports two Gbit Ethernet interfaces with TSN support, out-of-band management and real-time triggering. It also features up to 16GB of onboard LPDDR4x memory and supports EMMC onboard mass storage of up to 128GB.

The compact PC board can be expanded with two M.2 sockets. Other interfaces include: 2x USB3.1, 2x USB 2.0, 2x RS-232/422/485, 12V power input, CAN bus (optional) and GPIOs. Displays can be connected via 48-bit LVDS, optional eDP, Display Port or USB-C. For this purpose, Distec offers its customers a variety of standardized and customized solutions.

On request, we deliver the board with certified accessories, such as RAM, SSD, display, touch and cables with pre-installed operating system. Please contact us.
