IF419: Easy integration of G170J1-LE1

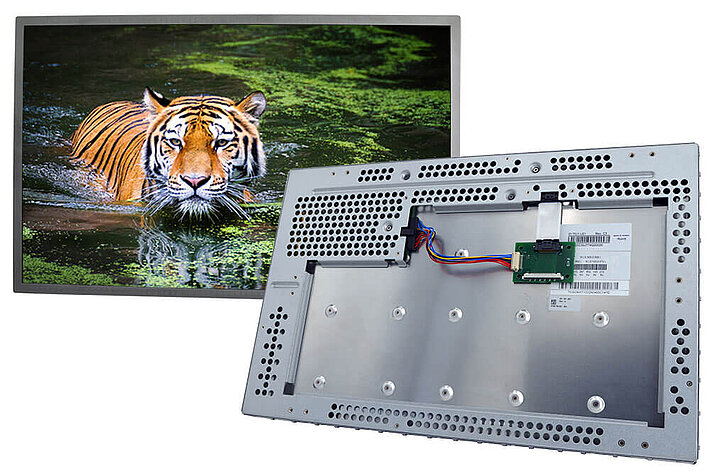

Innolux’ 17" TFT display G170J1-LE with WUXGA resolution (1920x1200 pixels) offers a wide, symmetrical viewing angle of v/h 176°/176°, a wide temperature range of -20 to + 80°C and an integrated LED converter. However, the connection to a normal LVDS and backlight interface is difficult, because between the two Molex connectors on the display there is a long distance. Therefore Distec developed the adapter board IF419 and a cable set, which combines the two display connectors to one LVDS and backlight interface.

The G170J1-LE with mounted IF419 and the necessary cable set is available as a plug-and-play kit solution (our part number CH-03-051). For easy control of the display we also offer a kit solution with our industrial <link _blank internal-link>Prisma RGB DVI TFT controllers or the <link _blank internal-link>Artista-IoT. Our TFT controllers can be adapted individually to your requirements. The most popular application of this TFT is the center console control panel in the Tesla S model.

 Please <link mail g170j1-le-if>contact us - we are happy to advise you!
