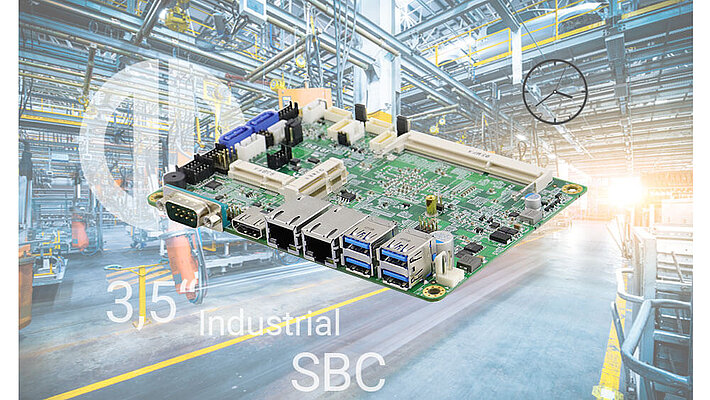

The Intel® Apollo Lake CPU Celeron® J3455 is used on the compact, fanless CPU board. On request, other processors of the Apollo Lake series such as the Pentium® N4200 / Celeron® N3350 or Atom™ E29xx can also be equipped - for a small minimum order quantity. With the E39xx processor family, the SBC can even be used in the extended operating temperature range of up to -40...+85°C. Up to 8GB DDR3L memory and many interfaces like HDMI(1.4b), 2x Gigabit LAN, Watchdog Timer, Digital I/O, 2x miniPCIe (one miniPCIe can be used as mSATA), 4x USB3.0, 2x USB 2.0, 4x COM and 2x SATA III are perfect for many applications. Furthermore the board has a wide input voltage range of 12 - 24 V DC-in.
We also offer an industrial Plug & Play TFT display kit solution with x86 control. It consists of the IB818, one or - for the standard version - two TFT displays and all necessary cables. You can choose between different displays from AUO and Tianma with or without PCAP touch screen in sizes from 7 to 24 inch. We deliver the kit completely configured.
The passively cooled SBC can be easily integrated into existing cooling solutions and is also suitable for harsh environmental conditions as well as from medical technology to measuring systems and self-service machines to applications for the Industrial Internet of Things (IIoT). A big advantage is also that iBASE promises long-term availability for the IB818 until the year 2031.
If you are interested and have any questions, please contact us.
