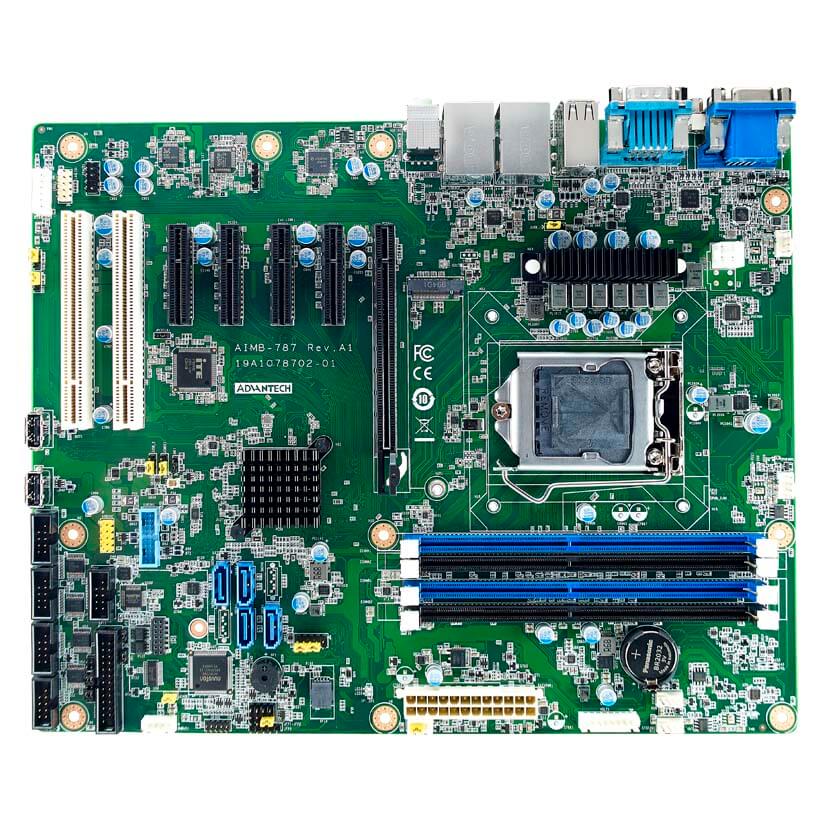

AIMB-787

ATX | 10th Gen. LGA 1200

ATX Motherboard for 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® LGA1200 Processor and Triple Display, DDR4, USB 3.2 and SATA 3.0

Features:

  • Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q470E chipset
  • Four DIMM sockets up to 128 GB DDR4 2933
  • Triple display DP/DVI-D/VGA and dual GbE LAN
  • SATA RAID 0, 1, 5, 10, USB 3.2
  • Supports Intel vPro, AMT & TPM technologies

Ordering information:

AIMB-787G2-00A1 | Q470E

Technical Data

Manufacturer
Advantech
Product Series
Motherboard
Product Category
ATX
CPU Type
  • Intel® Core™ i
  • Intel® Pentium®
  • Intel® Celeron®
CPU
  • i9-10900E/i9-10900TE
  • i7-10700E/i7-10700TE
  • i5-10500E/i5-10500TE
  • i3-10100E/i3-10100TE
  • G6400E/G6400TE
  • G5900E/G5900TE
Chipset
Q470E
Memory
max. 128 Gb DDR4
Temperature Range Top
0...+60°C
Interfaces
USB / RS232
RS232
Ethernet RJ45
PS2 for mouse and keyboard
USB 2.0
Line-out
RS232/422/485
VGA
DisplayPort
DVI
GPIO
USB-A
SATA
USB 3.2
MIC in
