AIMB-U117

UTX | Apollo Lake

UTX Motherboard with Intel® Apollo Lake Atom SoC and HDMI/eDP, LVDS/DP++, 2 COMs and Dual LAN

Features:

  • Intel® Atom™ Apollo Lake E3950/E3930 Processor
  • Up to 8 GB DDR3L Memory
  • HDMI/DP++, eDP (co-lay dual-channel 48-bit LVDS)
  • miniPCIe expansion slot, M.2 E-Key slot, 2x COMs (RS-232, RS-422/485), 4x USB 3.0 and Dual Gbit LAN
  • optional 32GB eMMC onboard
  • 12-24V DC-in
  • Wide temperature support
  • Cooler/fanless Solution
  • Dimensions: 112 x 117mm

Ordering information:

AIMB-U117D-S6A2E | X7-E3950
AIMB-U117NZ-S6A2E | X5-E3930
AIMB-U117NZ-FLA2E | X5-E3930, 32GB, CANBus, LDVS

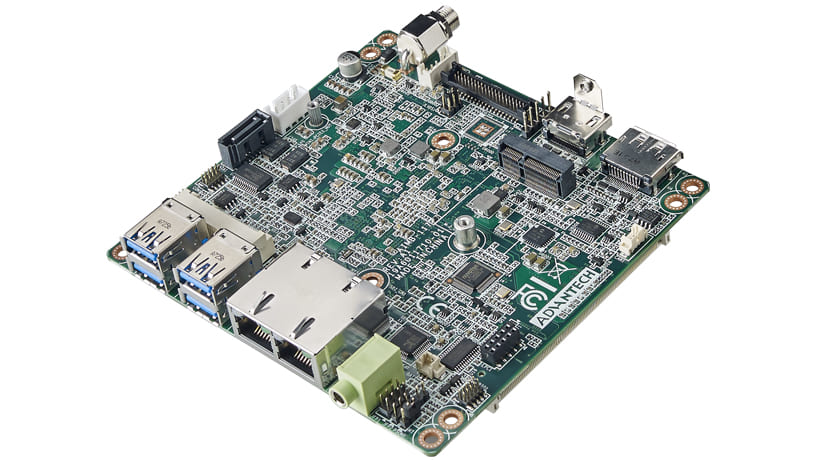

AIMB-U117 angle view

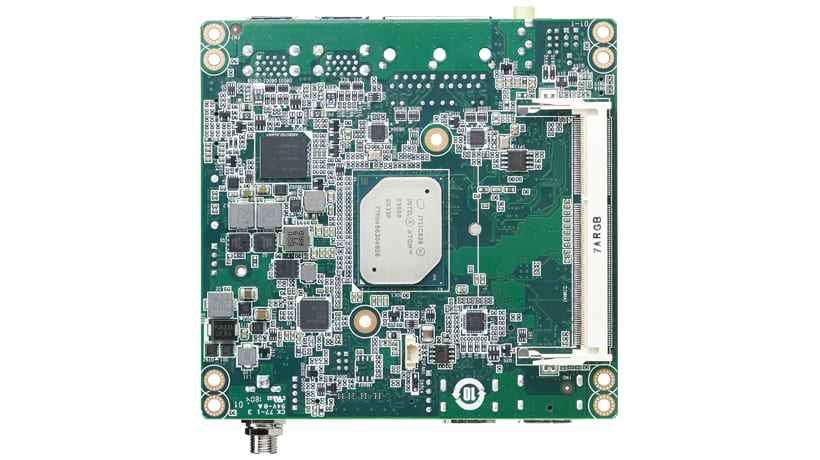

AIMB-U117 front view

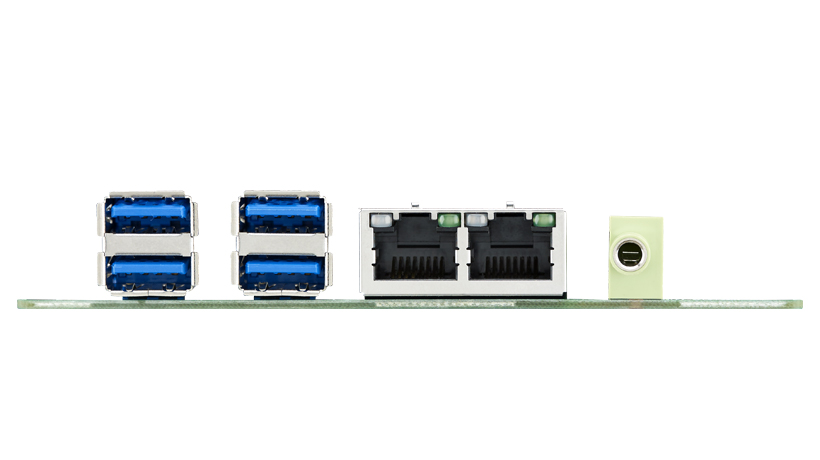

AIMB-U117 IO view

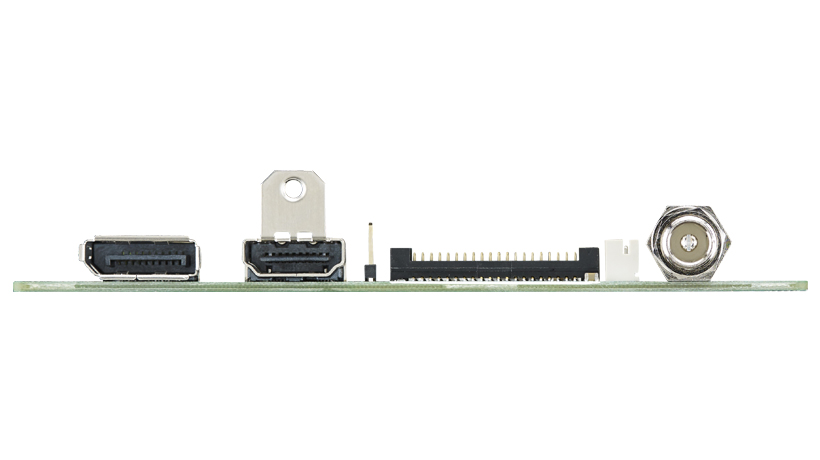

AIMB-U117 back IO view

Technical Data

Manufacturer
Advantech
Product Series
Motherboard
Product Category
UTX
CPU Type
Intel® Atom®
CPU
  • E3930
  • E3950
Memory
Max. 8 GB DDR4
Temperature Range Top
  • -20...+70°C
  • 0...+60°C
Temperature Range Tst
-40...+85°C
Interfaces
HDMI
USB 2.0
DisplayPort
GPIO
Audio
Gigabit LAN
COM
SATA
USB 3.2 Gen1
Power Supply
12 - 24V
