MIO-5152
3.5" SBC | Elkhart Lake

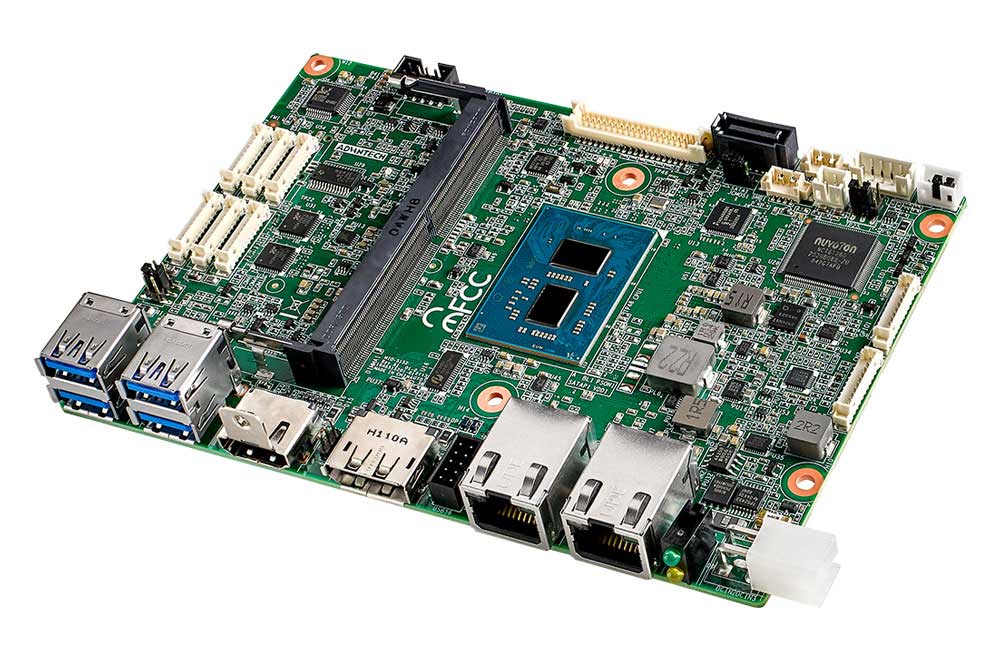

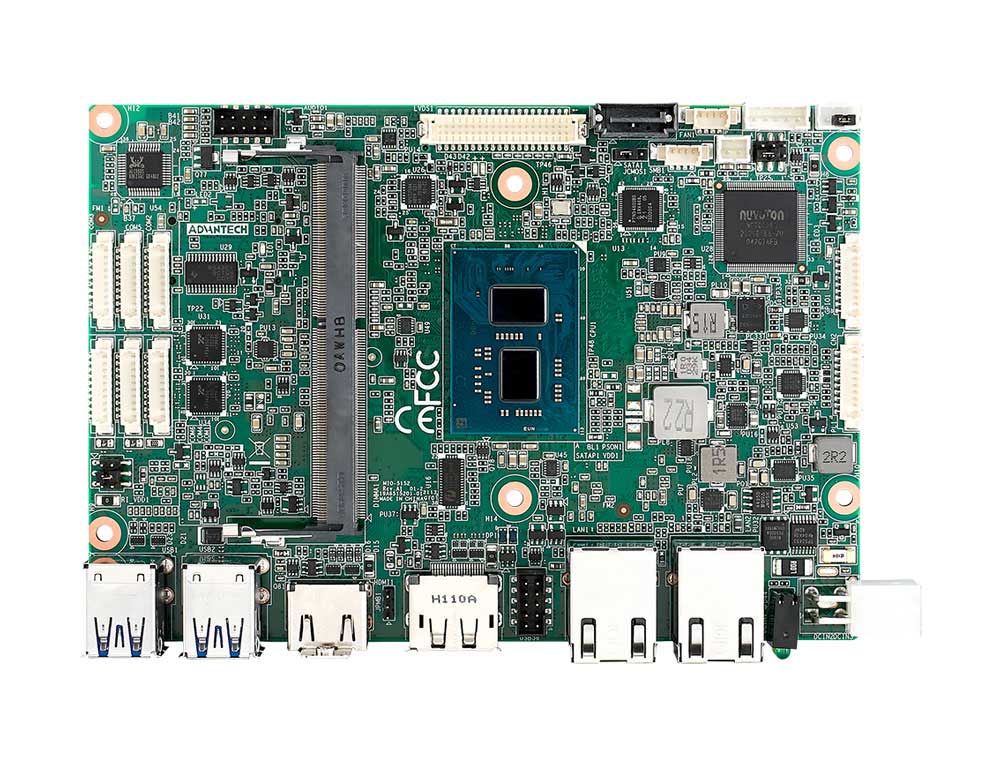

Advantech's MIO-5152 is an industrial 3.5" single board computer with an Intel® Atom™ x6000E, Elkhart Lake series, Celeron® N or J processor. The CPU series has long term available Quad or Dual Core processors with a TDP between 6-12W.
Data:
- Up to 32GB DDR4 SO-DIMM memory
- Control of 3 independent displays via LVDS, DP1.4, and HDMI2.0 up to 4K@60Hz
- Dual GbE, 6x USB, 6x UART, TPM2.0
- CE/FCC Class B, Coastline I/O ESD 8KV/15KV Criteria A
- Support Windows 10 LTSC & Ubuntu 20.04 LTS, embedded software APIs and
WISE-DeviceOn
Ordering information:
MIO-5152A-P0A1 | x6425E
MIO-5152J-U6A1 | J6412
MIO-5152N-U6A1 | N6210
Technical Data
Manufacturer
Advantech
Product Series
- 3.5" SBC
- Single Board Computer
Product Category
3,5" Compact SBCs
CPU Type
- Intel® Atom®
- Intel® Celeron®
CPU
- x6425E
- N6210
- J6412
Chipset
SoC
Memory
max. 32GB DDR4-3200 SDRAM
Temperature Range Top
-40...+85°C

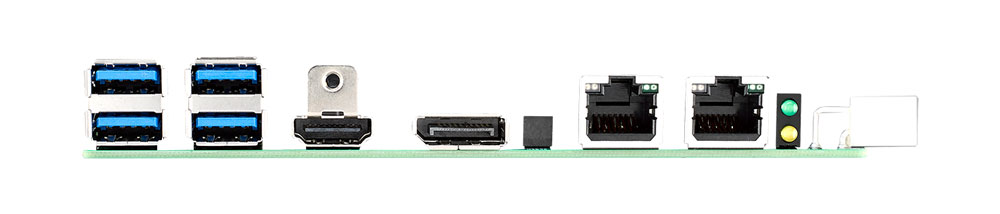

Interfaces
LVDS
HDMI
I²C
RS232
USB 2.0
RS232/422/485
DisplayPort
Audio
Gigabit LAN
SATA
Watchdog
USB 3.2
eSPI
TPM 2.0
GPIO 8-bit
M.2
Power Supply
12 V
