G084SAN01.0
Internal SAP ID: UP-02-285

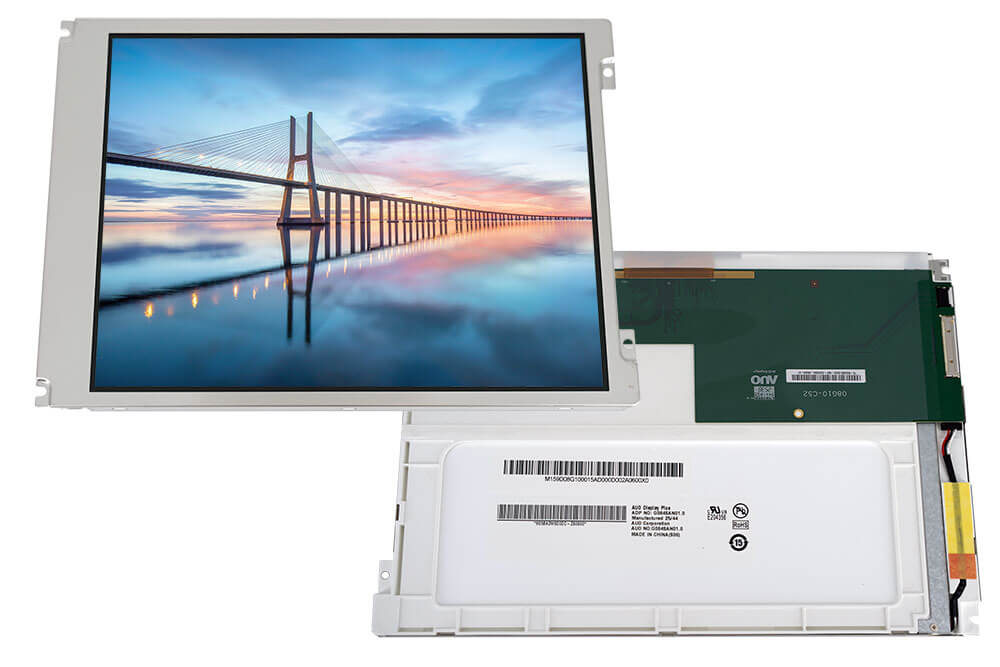

AUO's 8.4" TFT display G084SAN01.0 has a very wide temperature range and includes the LED backlight driving board.
Technical Data
Manufacturer
AUO
Technology
TFT
Product Series
- Standard Displays
- TFT Displays
Size Diagonal
08.4" (21.336 cm)
Resolution (max)
0800x600
Brightness [cd/m2]
0450
Contrast
1000:1
Backlight
LED
Converter
integriert
Viewing angle U/D/L/R
89/89/89/89
Temperature Range Top
-30...+80°C
Temperature Range Tst
-30...+80°C
Interfaces
LVDS
Format
4:3
Dimensions (LxWxD)
203.0 x 142.5 x 8.0mm
