G121EAN01.4
Internal SAP ID: UP-02-273

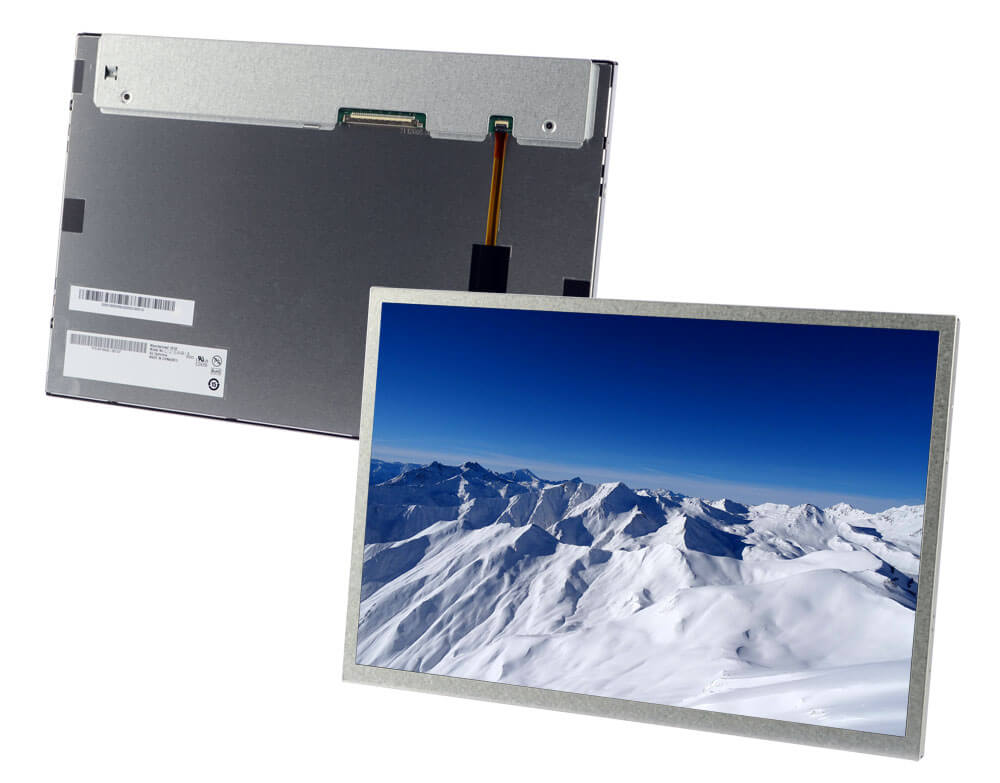

AUO's 12.1" TFT Display G121EAN01.4 features a very wide viewing angle and an extended temperature range. The panel includes the LED backlight driving board.
Technical Data
Manufacturer
AUO
Technology
TFT
Product Series
TFT Displays
Size Diagonal
12.1" (30.734 cm)
Resolution (max)
1280x800
Brightness [cd/m2]
0400
Contrast
1000:1
Backlight
LED
Converter
integriert
Viewing angle U/D/L/R
89/89/89/89
Temperature Range Top
-20...+70°C
Temperature Range Tst
-30...+80°C
Interfaces
LVDS
Format
16:10
Dimensions (LxWxD)
278.0 x 184.0 x 9.29 mm
