G170EG01 V104
Internal SAP ID: UP-02-061R1.1

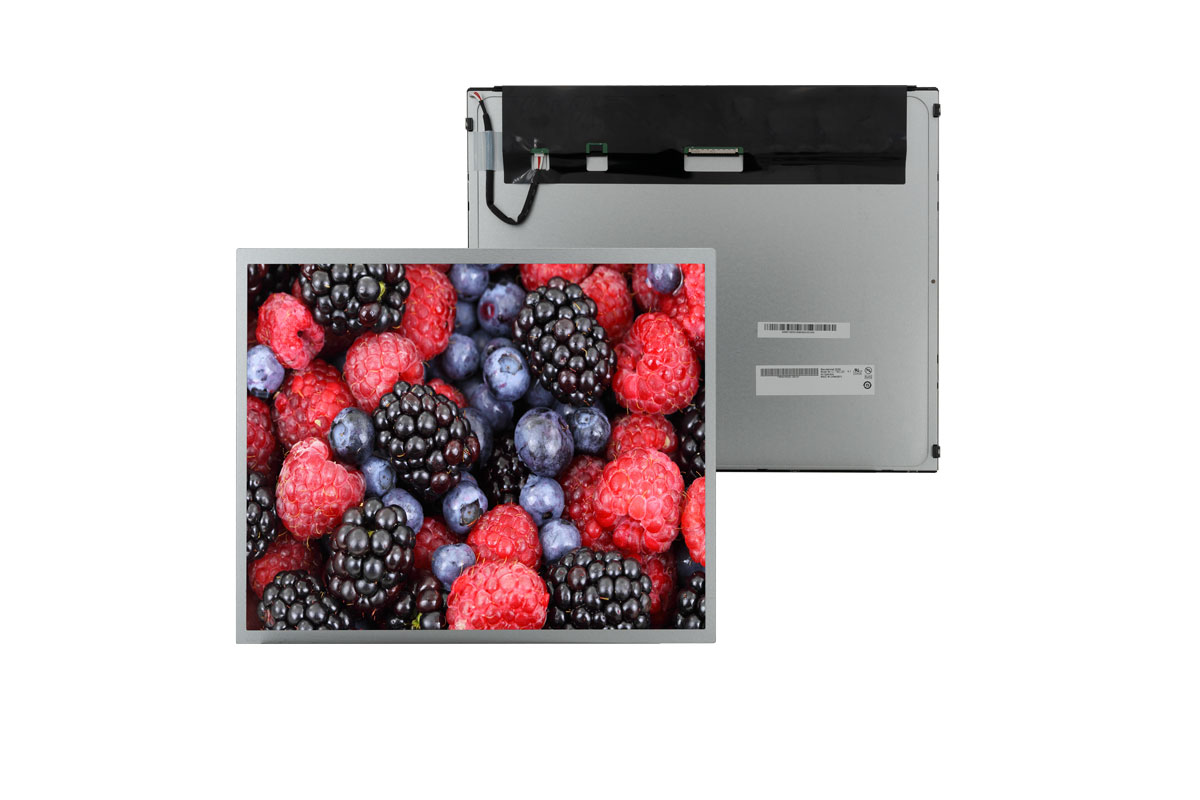

AUO's TFT display G170EG01V104 includes the LED backlight driving board and features a very wide temperature range.
Technical Data
Manufacturer
AUO
Technology
TFT
Product Series
- Standard Displays
- TFT Displays
Size Diagonal
17.0" (43.18 cm)
Resolution (max)
1280x1024
Brightness [cd/m2]
0350
Contrast
0800:1
Backlight
LED
Viewing angle U/D/L/R
60/80/80/80
Temperature Range Top
-30...+85°C
Temperature Range Tst
-30...+85°C
Interfaces
LVDS
Format
5:4
Dimensions (LxWxD)
358.5 x 296.5 x 12.5mm
