EPD-3133

E-Paper monitor

Internal SAP ID: MO-60-068

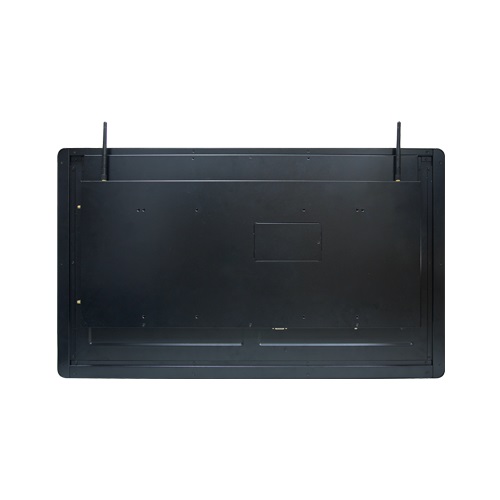

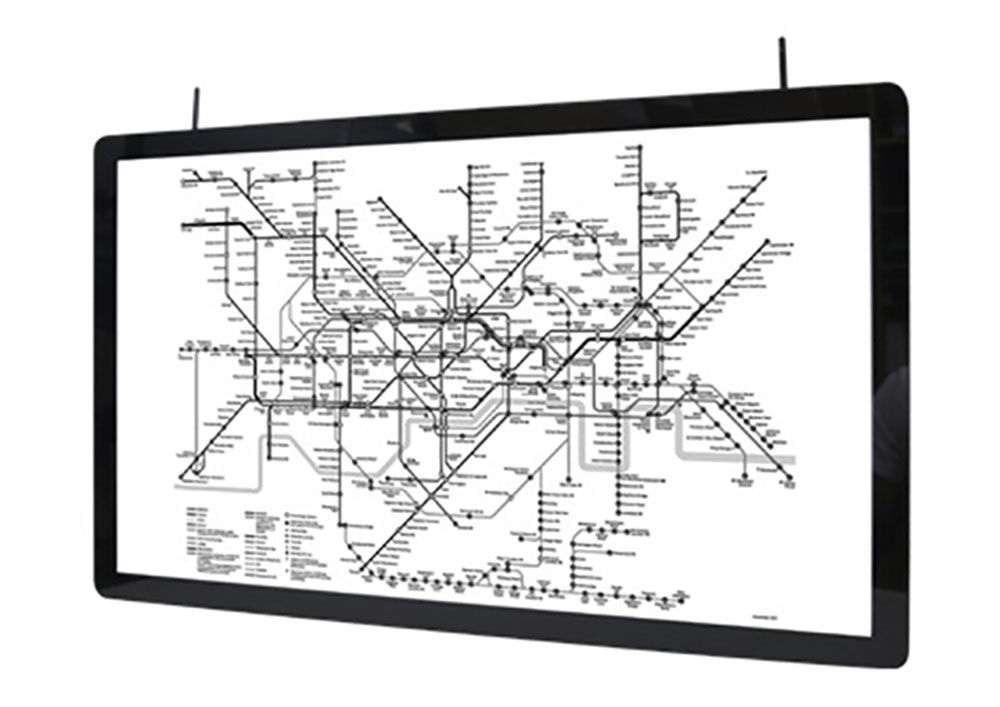

The EPD-3133 31,2" E-Paper monitor with Intel® Celeron® SoC BGA Processor N3350 (with CPU Bottom Mounted) by Avalue. It has a Open frame design(full flat) and P-cap touch(optional).

Data:

  • 31.2” E Ink Public Display (Monochrome)
  • Onboard Intel® Celeron® SoC BGA Processor N3350 (with CPU Bottom Mounted)
  • Single DRAM Socket, Max. Up to 8GB DDR3L 1866MHz
  • 1 x SATA III / 1 x HDMI 1.4 / 1 x COM / 2 x LAN / 4 x USB3.1
  • +19 DC Voltage Input
  • Operating temp. 0~50 degrees
  • Dual mPCIe Expansion Slot
  • TPM 2.0
  • Open frame design(full flat)
  • Option for Wi-Fi & BT function
  • P-cap touch(optional)
  • Front light module(optional)
  • VESA mount compliant(400 × 200 mm)

Ordering information:
EPD-3133-OFD-A1R (Open Frame) MO-60-068
EPD-3133-SID-A1R (SID mode) MO-60-069
EPD-3133-TFD-A1R (True Flat Glass) MO-60-070
EPD-3133-TFT-A1R (True Flat Touch) MO-60-071

EPD-3133
EPD-3133

Technical Data

Manufacturer
Avalue
Technology
TFT
Product Series
Xtra-Line
Product Category
  • Panel PCs
  • E-Paper monitor
  • High Brightness Monitors
Size Diagonal
31,2" (79.248 cm)
Resolution (max)
2560x1440
Controller
Intel® Celeron
Memory
Up to 8GB DDR3L
Temperature Range Top
0...+50°C
Temperature Range Tst
-20...+60°C
Interfaces
TTL
USB
HDMI
LAN
RS232/422/485
GPIO
Audio
miniPCIe
mSATA
SATA 3.0
COM
Micro-USB
USB 3.2 Gen2
Power Supply
DC +19V
Dimensions (LxWxD)
750x445x36.7mm
