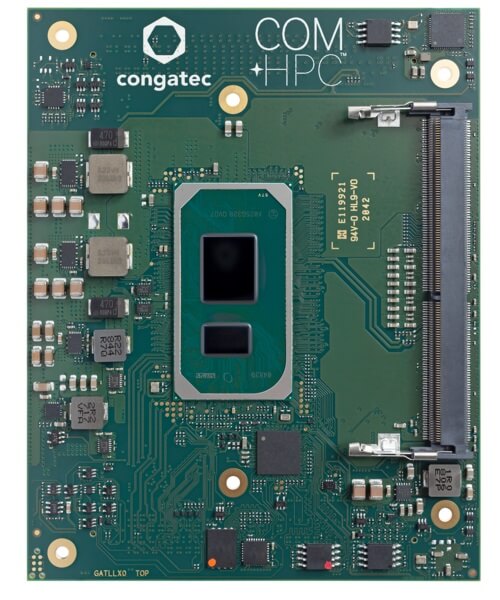

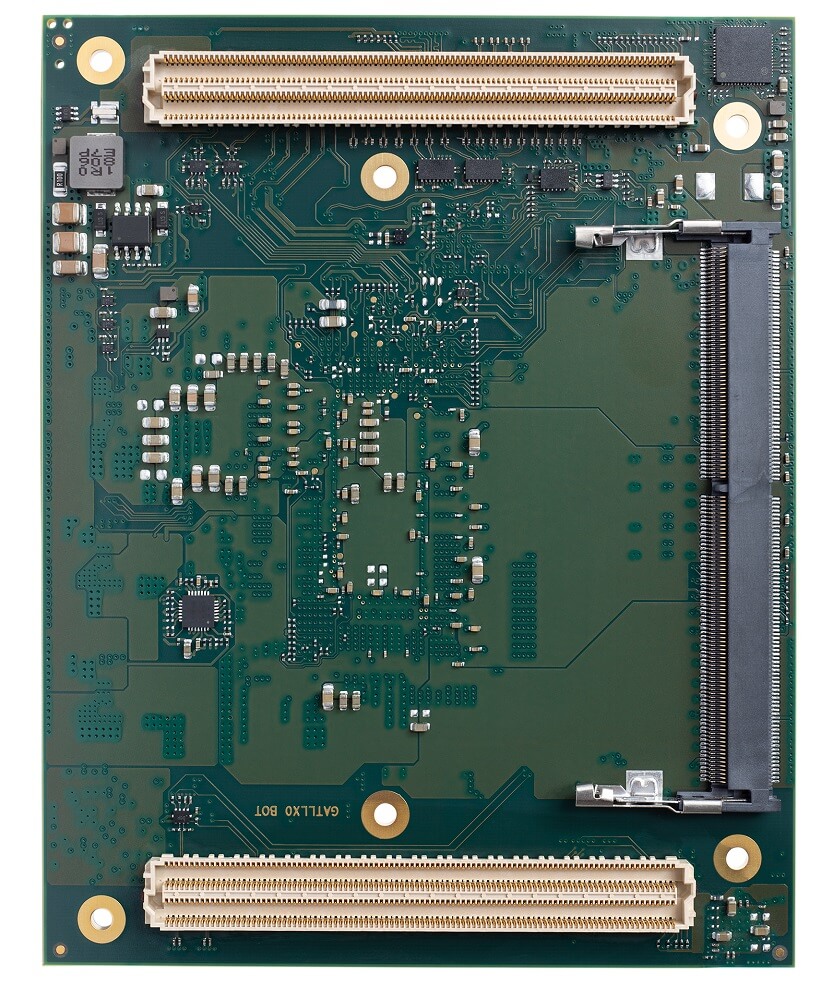

conga-HPC/cTLU

COM-HPC Modul | 11th Core i

Cutting edge COM-HPC Module with Intel® Core i Processors, high performance Intel Xe (Gen 12) grapgocs and an optional extendend operating temperate range

Features:

  • COM-HPC Client Size A
  • configurations with 11xGxE Tiger Lake Celeron, i3, i5 or i7
  • supportsut to 4 independent displays (4x 4K, 2x 8K)
  • PCI Express Gen 4
  • 1x eDP, 3x DP/HDMI/DP++
  • 2x 2.5 GbE LAN via Intel i225
  • 2x USB 4, 2x USB 3.2, 8x USB 2
  • Watchdog Timer
  • Wide-range operating temperature

Ordering information:

050600 | i7-1185G7E
050601 | i5-1145G7E
050602 | i3-1115G4E
050603 | Celeron 6305E
050610 | i7-1185GRE (wide temp)
050611 | i5-1145GRE (wide temp)
050612 | i3-1115GRE (wide temp)

Technical Data

Manufacturer
congatec
Product Series
Computer-on-Module
Product Category
Special SOM
CPU Type
Intel® Atom®
CPU
  • i7-1185G7E
  • i7-1185GRE
  • i5-1145G7E
  • i3-1115G4E
  • 6305E
  • i5-1145GRE
  • i3-1115GRE
Chipset
SoC
Memory
Max. 2x 32GB DDR4 SO-DIMM
Temperature Range Top
-40...+85°C
Temperature Range Tst
-40...+85°C
Interfaces
eDP
HDMI
USB 2.0
DisplayPort
UART
Audio
SATA
Watchdog
USB 3.2
