conga-IC175

Mini-ITX | 7. Gen. Core™ U-Series

Mini-ITX Embedded Motherboard with 7. Gen. Intel® Core and Celeron U Processors

Features:

  • Low Power DualCore SoC
  • Intel HD600 Series Graphics
  • Supports Intel Optane Memory on M.2
  • Supports up to 16 GB DDR4 2.133 MT/s
  • 12 - 24 V Power Input

Congatec will discontinue the conga-IC175. The last order date is the end of August 2023. For details please refer to the EOL notice below.

Ordering information:
052903 | conga-IC175/i7-7600U
052900 | conga-IC175/i5-7300U
052901 | conga-IC175/i3-7100U
052902 | conga-IC175/3965U

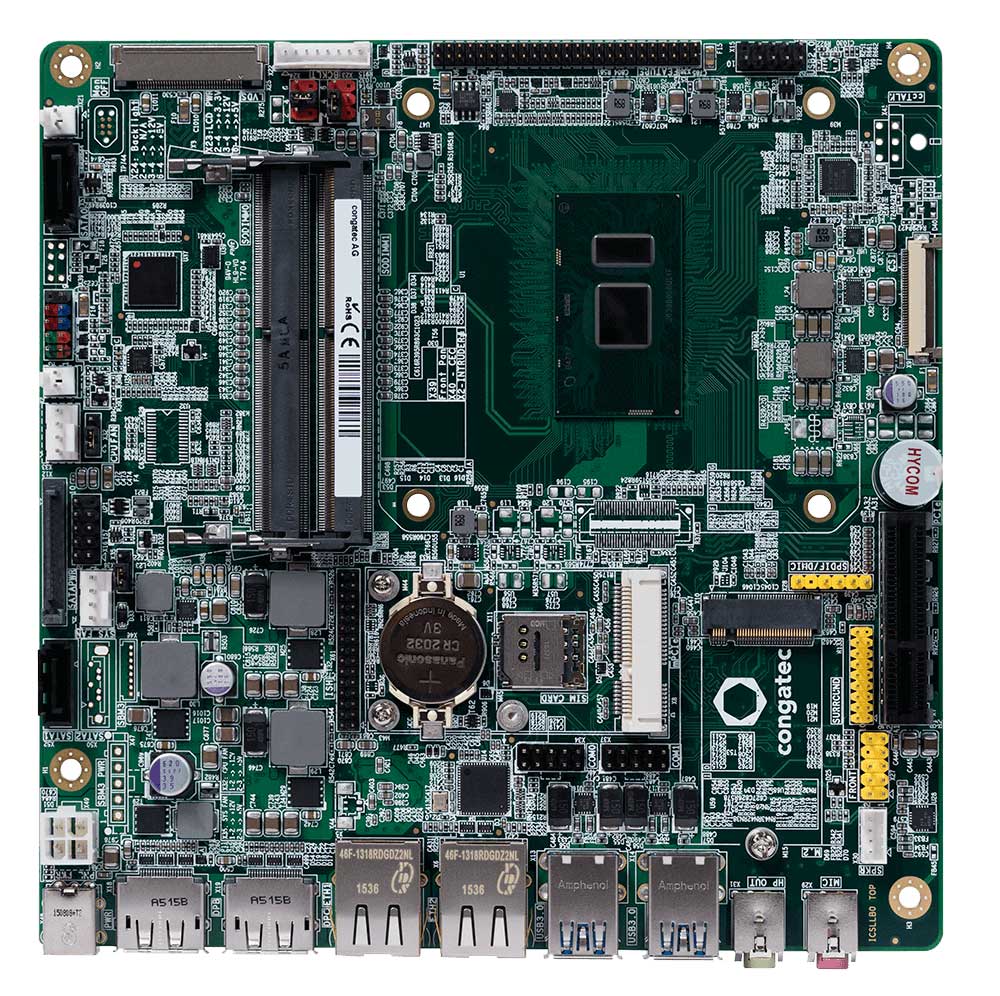

conga-IC175 front view

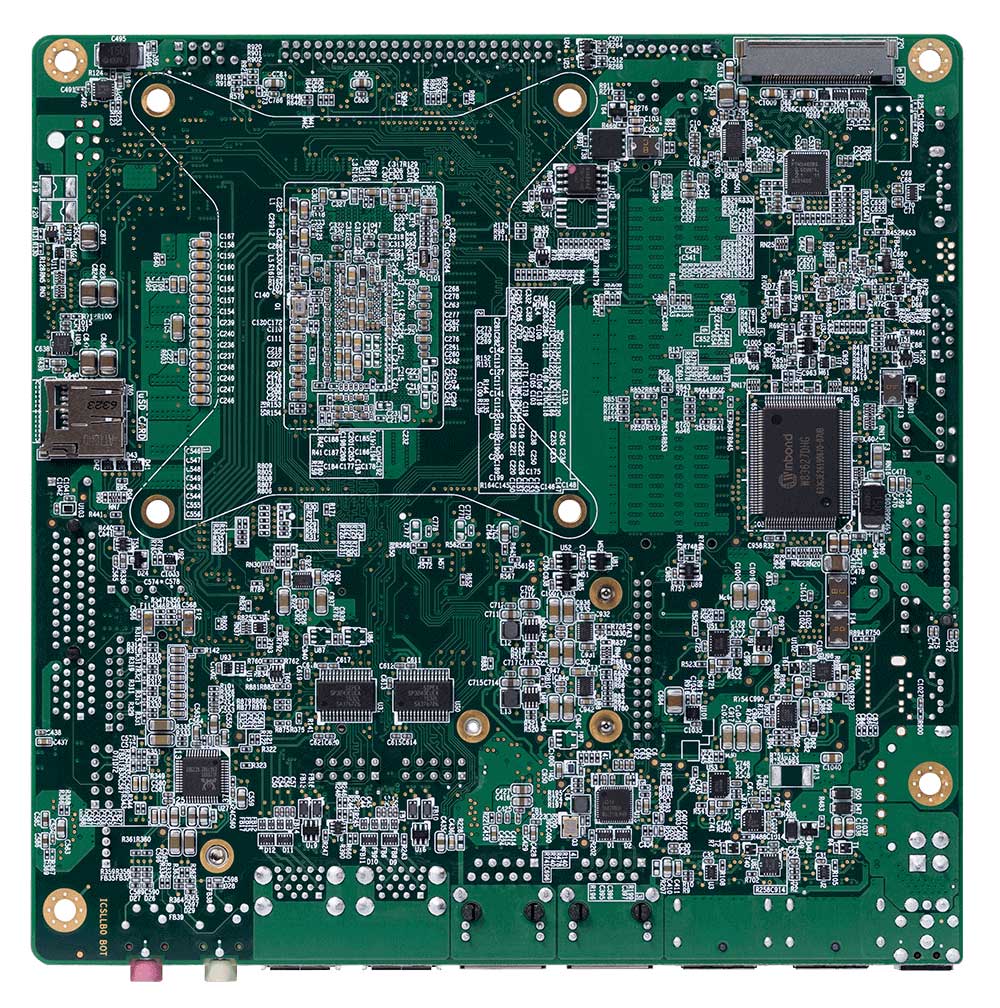

conga-IC175 rear view

Technical Data

Manufacturer
congatec
Product Series
Motherboard
Product Category
Mini-ITX
CPU Type
  • Intel® Core™ i
  • Intel® Celeron®
CPU
  • 3965U
  • i5-7300U
  • i7-7600U
  • i3-7100U
Chipset
SoC
Memory
max. 2x 16GB DDR3L
Temperature Range Top
0...+60°C
Temperature Range Tst
-20...+70°C
Interfaces
eDP
LVDS
HDMI
RS232
USB 2.0
RS232/422/485
DisplayPort
GPIO
Audio
miniPCIe
Gigabit LAN
SATA 3.0
PCIe
LPC Bus
USB 3.2 Gen1
