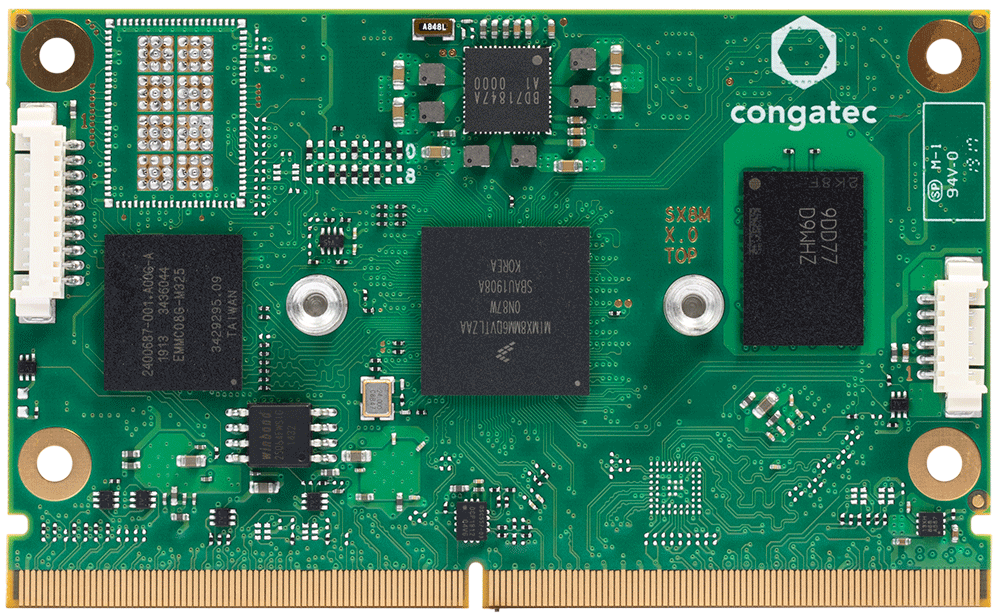

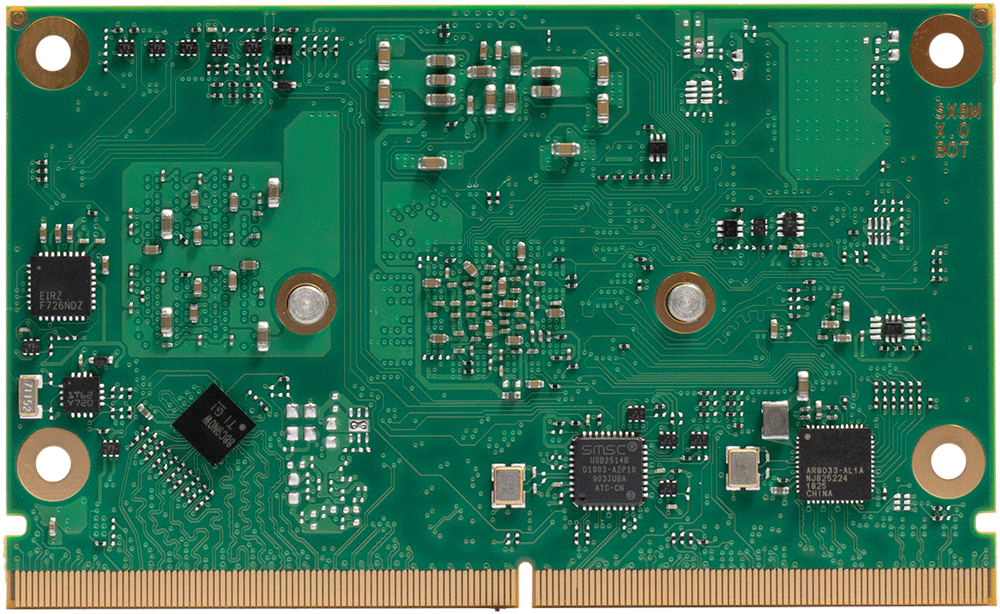

conga-SMX8-Mini

SMARC™ | NXP i.MX8M Mini

SMARC 2.0 module based on NXP i.MX8M Mini processor series
Display Kit solutions

Features:

  • Scalable ARM Performance with up to 4x 1.8GHz Cortex-A53 and 1x Cortex-M4F
  • Highly improved power efficiency and performance by 14LPC FinFET process technology
  • 3D Graphics with full-HD resolution
  • MIPI CSI-2 camera interface
  • Extended longevity up to 15 years

Ordering information:

051201 | conga-SMX8-Mini/DC-2G eMMC16
051203 | conga-SMX8-Mini/QC-2G eMMC16
051200 | conga-SMX8-Mini/QC-4G eMMC16
051204 | conga-SMX8-Mini/QC-4G eMMC16 DP
051202 | conga-SMX8-Mini/SC-1G eMMC16
051221 | conga-SMX8-Mini/i-DC-2G eMMC16
051223 | conga-SMX8-Mini/i-QC-2G eMMC16
051220 | conga-SMX8-Mini/i-QC-4G eMMC16
051222 | conga-SMX8-Mini/i-SC-1G eMMC16

conga-SMX8-Mini
conga-SMX8-Mini

Technical Data

Manufacturer
congatec
Product Series
Computer-on-Module
Product Category
SMARC™
CPU Type
ARM®
CPU
i.MX8M Mini
Memory
max. 4 GB LPDDR4
Temperature Range Top
  • -40...+85°C
  • 0...+60°C
Temperature Range Tst
-40...+85°C
Interfaces
LVDS
HDMI
MIPI
I²C
USB 2.0
DisplayPort
GPIO
UART
PCIe
Watchdog
