IB837

3,5" SBC | Elkhart Lake

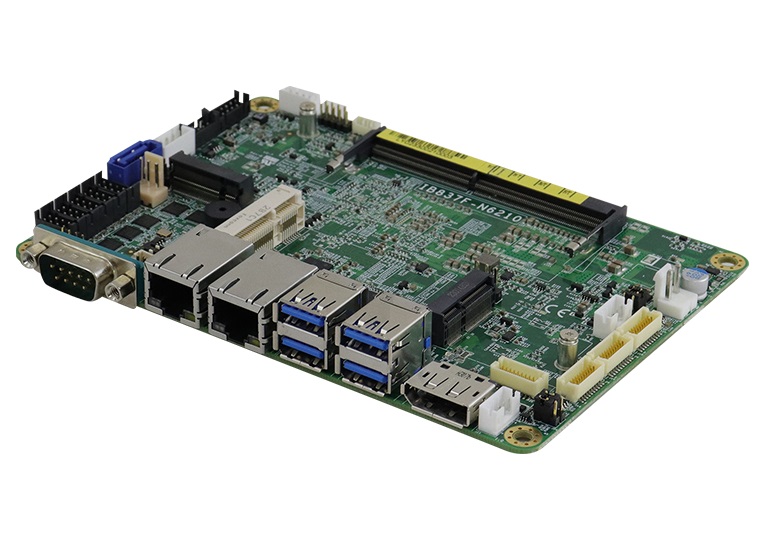

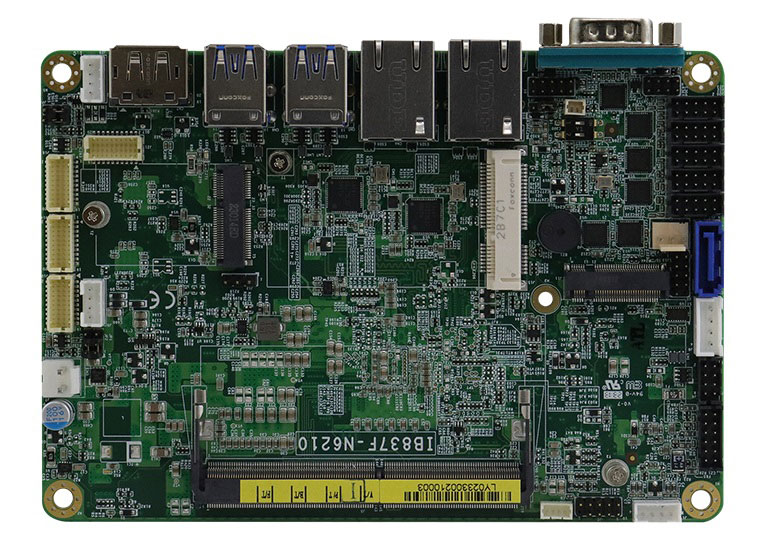

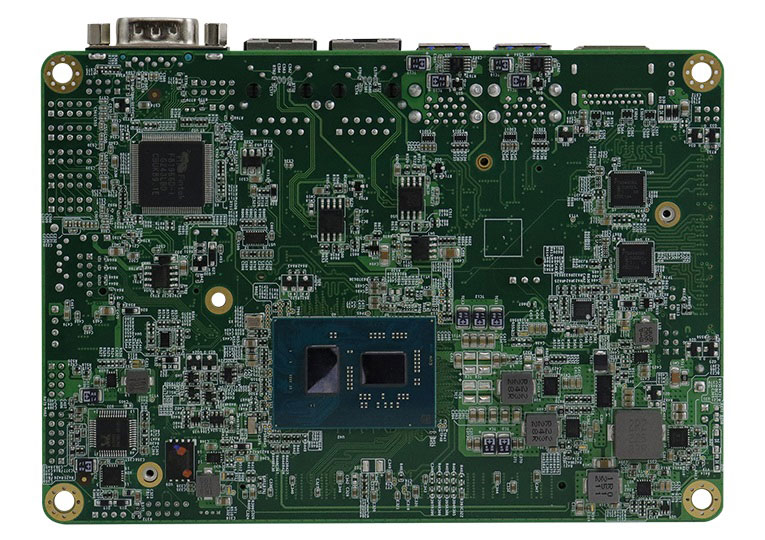

iBASE 3,5" SBC Single-Board Computer with Intel® Celeron® N & J series Elkhart Lake Processor

Features:

  • Onboard Intel® Celeron® N & J series processor
  • 1x DDR4-3200 SO-DIMM, Max. 16GB
  • Supports 1x DisplayPort & 2x dual channel LVDS
  • 2x I226V PCI-E 2.5G LAN, 6x COM ports
  • 4x USB 3.1, 2x USB 2.0, 1x SATA III (shared with M/2 B-key)
  • 2x M.2 sockets (E-key & B-key), 1x Mini PCI-E slot (full-size)
  • Watchdog timer, Digital I/O, fTPM, mSATA, 12V only DC-in

Ordering Information:
IB837F-J6412 | Intel® Celeron® J6412
B837F-N6210 | Intel® Celeron® N6210



IB837
IB837
IB837

Technical Data

Manufacturer
iBase
Product Series
  • 3.5" SBC
  • Single Board Computer
CPU Type
Intel® Celeron®
CPU
  • N6210
  • J6412
Memory
DDR4-3200 SO-DIMM, Max. 16GB
Temperature Range Top
0...+60°C
Temperature Range Tst
-20...+80°C
Interfaces
LVDS
RS232
USB 2.0
RS232/422/485
DisplayPort
Audio
miniPCIe
Gigabit LAN
SATA 3.0
COM
M.2
USB 3.2 Gen2
Power Supply
12V
