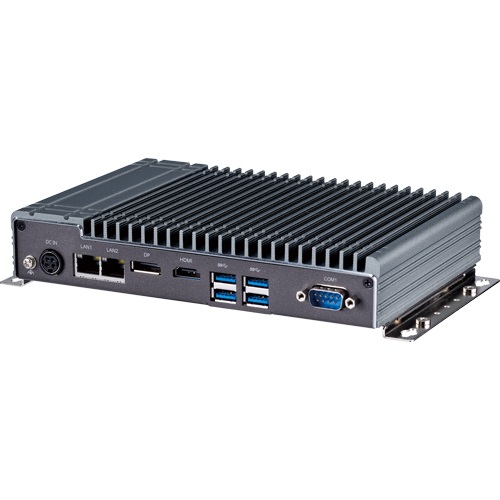

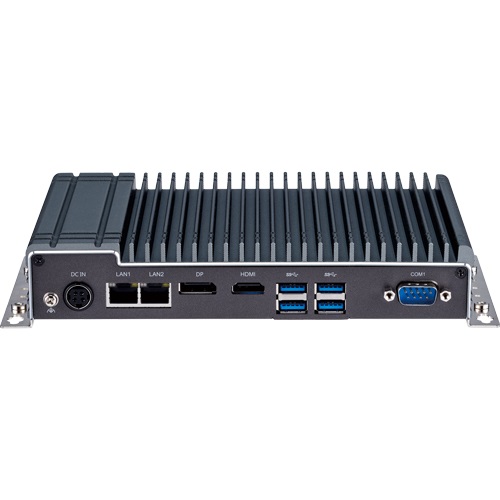

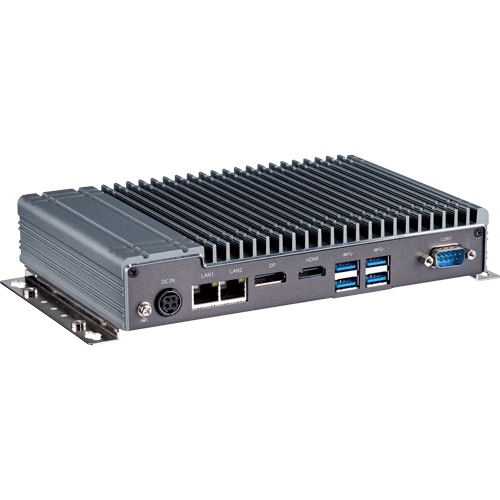

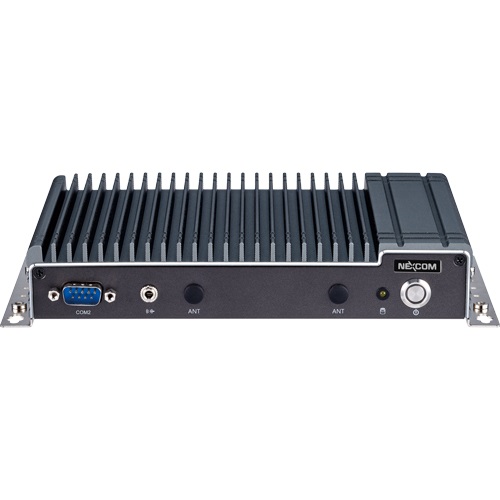

NDiS B360

Embedded Box PC | 11th Gen. Intel® Core™ Tiger Lake UP3 Prozessor

Fanless Embedded BoxPC with 11th Gen. Intel® Core™ Tiger Lake UP3 Processor

Features:

  • 11th Generation Intel® Core™ (Tiger Lake-UP3) processor SoC
  • Dual 4K @ 60Hz display output, DP++, HDMI 2.0
  • Support 4K @ 60Hz eDP display output
  • Dual LAN ports and 4 x USB 3.0 ports for easy connection
  • Compact and slim design (H: 36mm)
  • Onboard M.2 2280 Key M with PCIe signal for storage modules
  • Onboard M.2 2230 Key E for optional Wi-Fi modules
  • Support extended temperature for outdoor application
  • Fanless design

Ordering Information:

  • NDiS B360-i3 (P/N: 10W00B36000X0)
  • NDiS B360-i5 (P/N: 10W00B36001X0)
NDiS B360
NDiS B360
NDiS B360
NDiS B360

Technical Data

Manufacturer
Nexcom
Product Series
Embeddes Systems
Product Category
Box PCs
CPU Type
Intel® Core™ i
CPU
  • i7-1185G7E
  • i5-1145G7E
  • i3-1115G4E
Chipset
SoC
Memory
max. 32 GB, 1 x 260-pin DDR4 SO-DIMM
Temperature Range Top
-20...+60°C
Temperature Range Tst
-20...+80°C
Interfaces
USB 2.0
Line-out
RS232/422/485
GPIO
Gigabit LAN
TPM 2.0
M.2
MIC in
HDMI 2.0
USB 3.2 Gen1
