NL192108AC10-01D
Internal SAP ID: NL-01-024

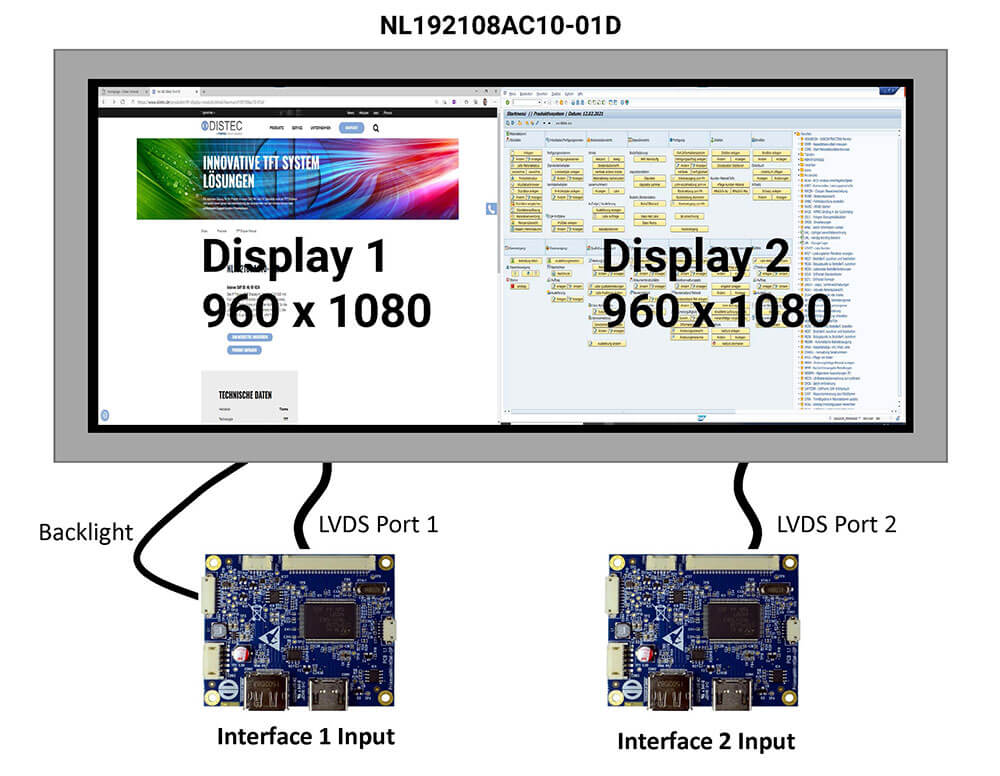

Tianma's 9" TFT display NL192108AC10-01D with two separate halves and thus a resolution of 960 x 2 x 1080 and two separate LVDS inputs offers a wide viewing angle, due to SFT technology and and includes the LED backlight driving board. A special LVDS timing is necessary.
Technical Data
Manufacturer
Tianma
Technology
TFT
Product Series
- Standard Displays
- TFT Displays
Size Diagonal
09.0" (22.86 cm)
Resolution (max)
2 x 960x1080
Brightness [cd/m2]
0400
Contrast
0700:1
Backlight
LED
Converter
integriert
Viewing angle U/D/L/R
88/88/88/88
Temperature Range Top
-20...+70°C
Temperature Range Tst
-30...+80°C
Interfaces
LVDS
