NL192108AC13-02D
Internal SAP ID: NL-60-105R1.1

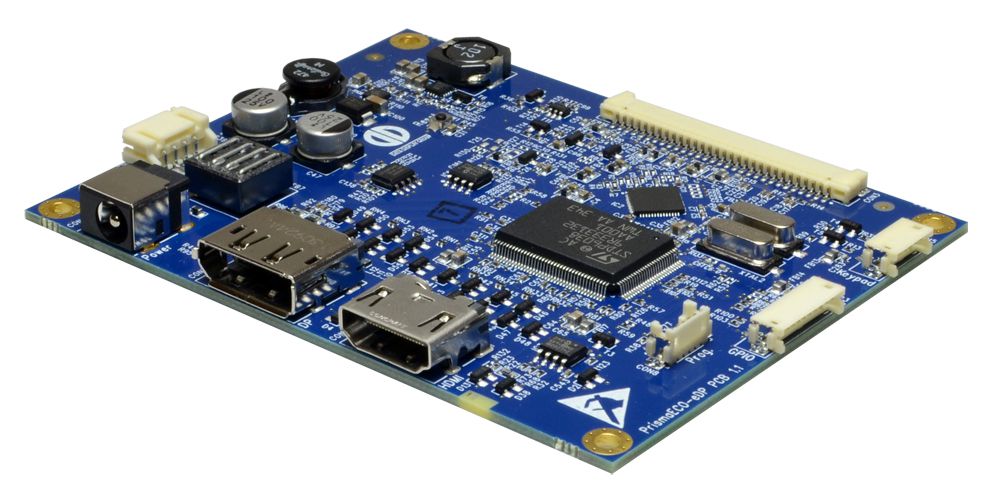

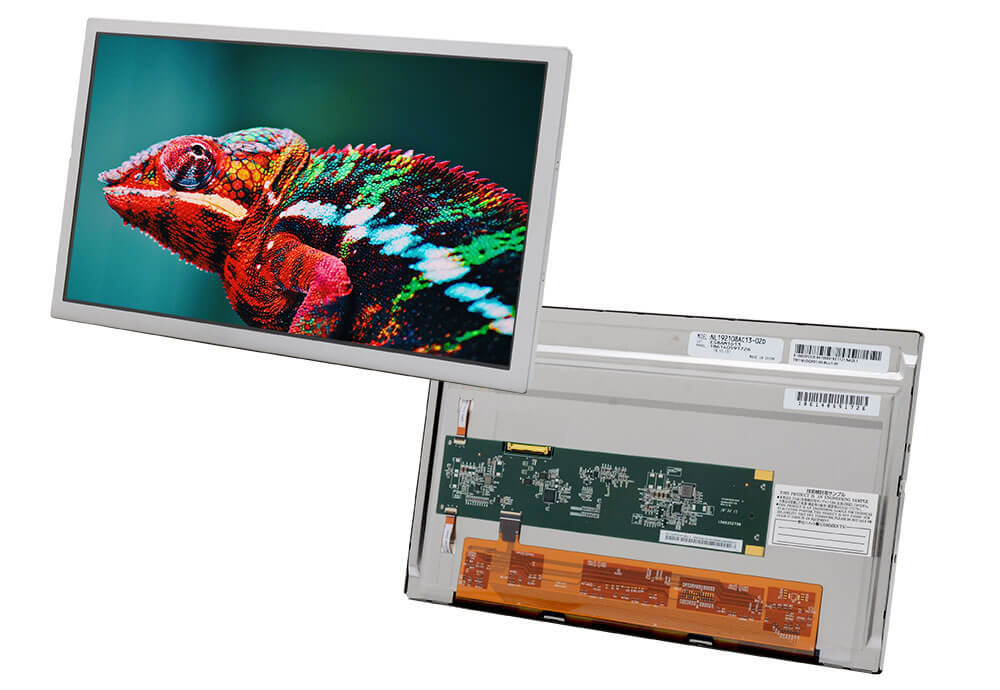

Tianma's 11.6" TFT Display NL192108AC13-02D with Full-HD resolution features a wide viewing angle due to SFT technology and includes the LED backlight driving board. The PrismaECO-eDP TFT controller enables a fast and easy implementation of this display.
Technical Data
Manufacturer
Tianma
Technology
TFT
Product Series
- Standard Displays
- TFT Displays
Size Diagonal
11.6" (29.464 cm)
Resolution (max)
1920x1080
Brightness [cd/m2]
0450
Contrast
1000:1
Backlight
LED
Converter
integriert
Viewing angle U/D/L/R
88/88/88/88
Temperature Range Top
-20...+70°C
Temperature Range Tst
-30...+80°C
Interfaces
eDP
Format
16:9
Dimensions (LxWxD)
276.5 x 165.6 x 6.0mm
