NL192108BC18-06F
Internal SAP ID: NL-01-027

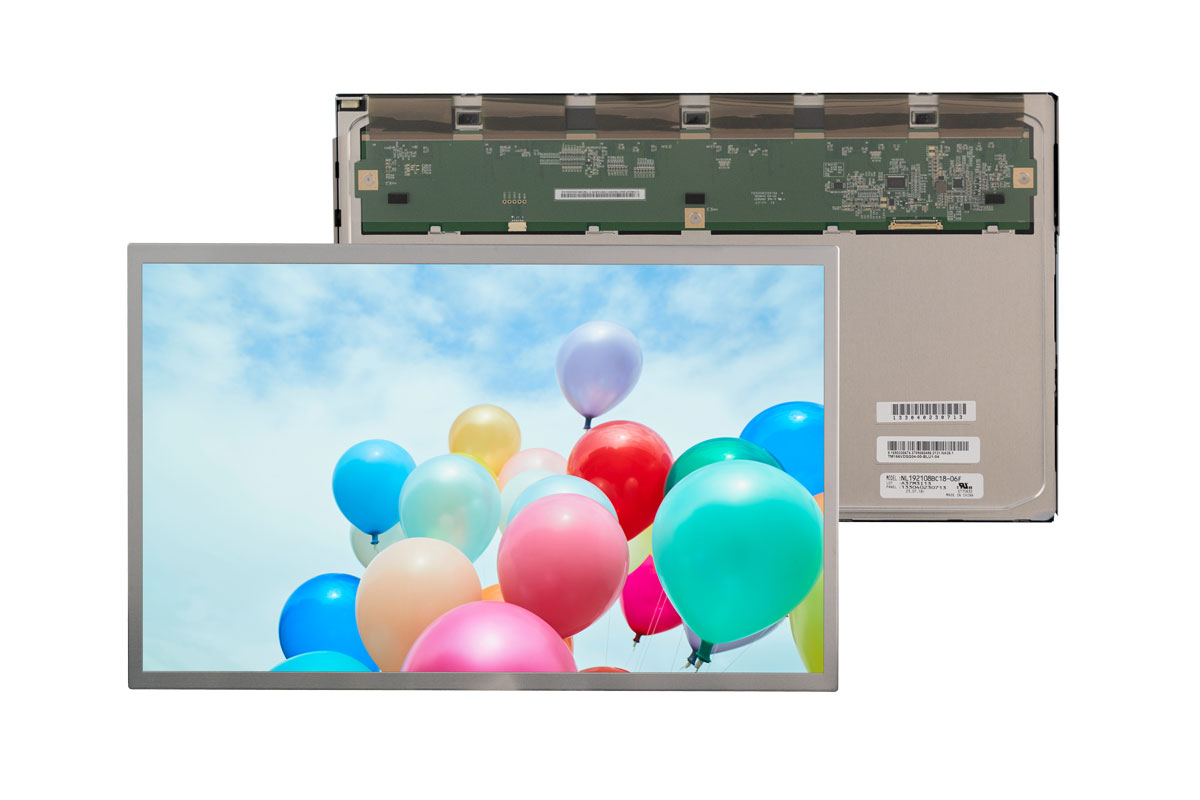

Tianma's TFT display NL192108BC18-06F features high resolution, a wide temperature range and high brightness. Thanks to SFT technology is has a wide, symmetrical viewing angle. The display features an eDP interface and can be controlled via our Prisma-ECO-eDP TFT controller board.
Technical Data
Manufacturer
Tianma
Technology
TFT
Product Series
- High Brightness TFTs
- TFT Displays
Size Diagonal
15.6" (39.624 cm)
Resolution (max)
1920x1080
Brightness [cd/m2]
1500
Contrast
0700:1
Backlight
LED
Viewing angle U/D/L/R
88/88/88/88
Temperature Range Top
-30...+85°C
Temperature Range Tst
-40...+85°C
Interfaces
eDP
Format
16:9
Dimensions (LxWxD)
363.8 x 215.9 x 15.7
