NL6448BC33-70

Internal SAP ID: NL-60-019

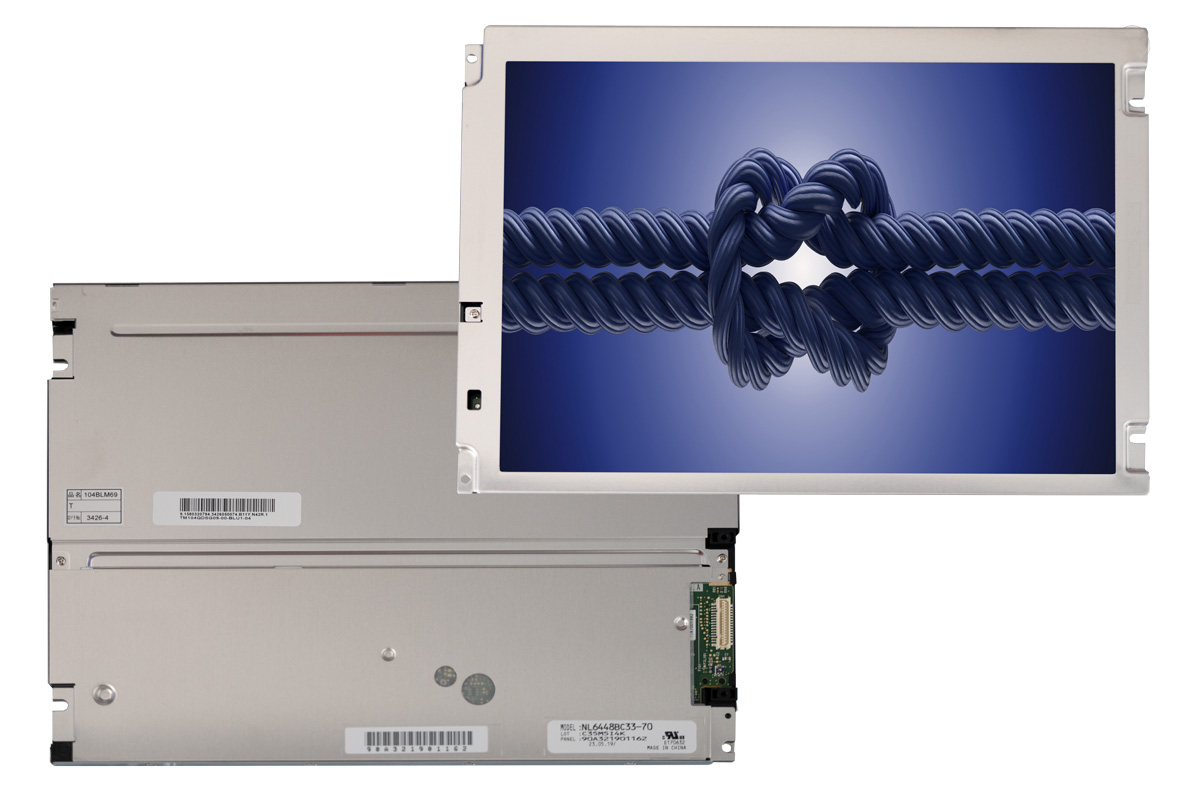

Tianma's 10,4" TFT Display NL6448BC33-70 has a very wide operating temperature range and a TTL Interface.

Unfortunately, Tianma will discontinue this display and the last order date is end of September 2024. The successor is P1040VGF1MB00.

EOL Notice

Request a quote

Technical Data

Manufacturer

Tianma

Technology

TFT

Product Series

Standard Displays
TFT Displays

Size Diagonal

10.4" (26.416 cm)

Resolution (max)

0640x480

Brightness [cd/m2]

0450

Contrast

0900:1

Backlight

LED

Viewing angle U/D/L/R

80/80/80/80

Temperature Range T_op

-30...+80°C

Temperature Range T_st

-30...+80°C

Interfaces

TTL

Format

4:3

Dimensions (LxWxD)

243.0 x 185.1 x 10.5mm

Downloads

data sheet

NL6448BC33-70

Accessories

DP104FF005CL092-25
