P1160FHF1MA00
Internal SAP ID: TI-01-020

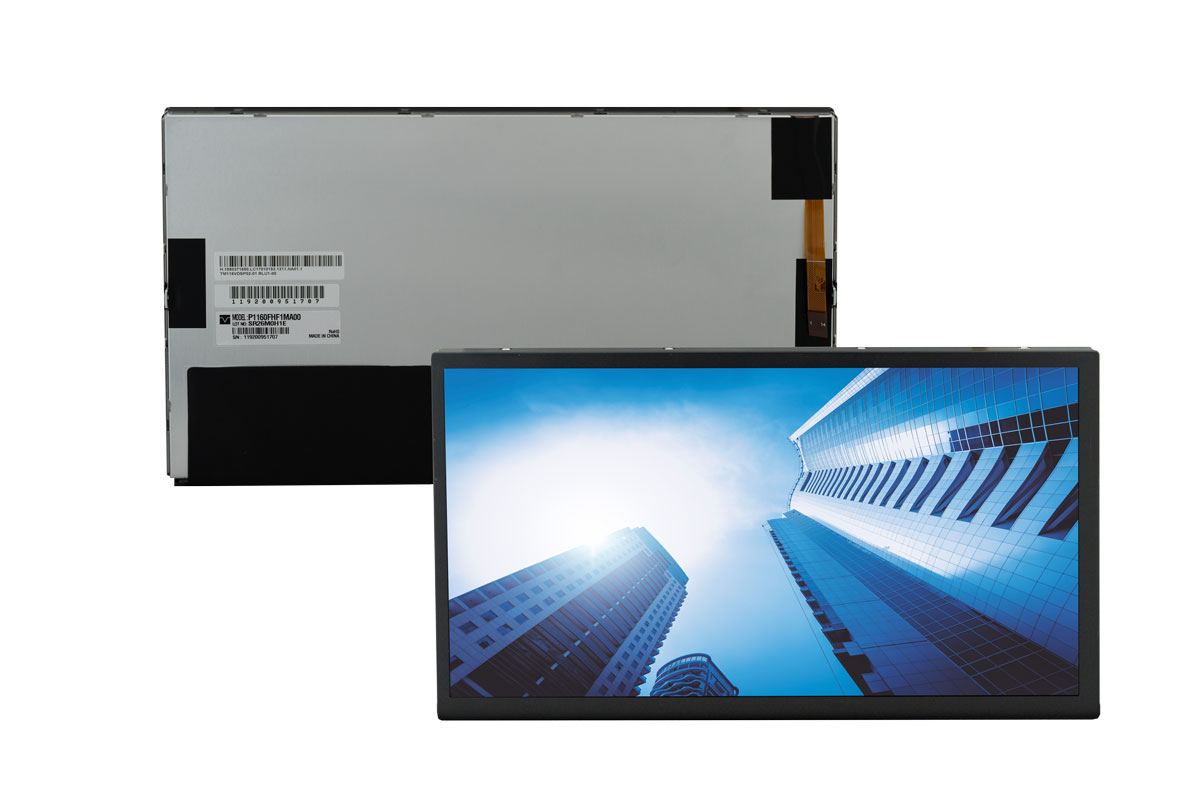

Tianma's 11.6" TFT display P1160FHF1MA00 with Full HD resolution is particularly bright with 1600 cd/m² and perfectly readable even in bright ambient light.
The SFT technology (equivalent to the IPS technology) ensures a wide viewing angle from all sides with the lowest color shift. The wide operating temperature range of -20 to + 80°C enables operation under harsh environmental conditions. The elegant, black display frame is suitable for modern designs.
Technical Data
Manufacturer
Tianma
Technology
TFT
Product Series
- TFT Displays
- High Brightness TFTs
Size Diagonal
11.6" (29.464 cm)
Resolution (max)
1920x1080
Brightness [cd/m2]
1600
Contrast
0900:1
Backlight
LED
Viewing angle U/D/L/R
88/88/88/88
Temperature Range Top
-20...+80°C
Temperature Range Tst
-30...+85°C
Interfaces
LVDS
Format
16:9
Dimensions (LxWxD)
273.5 x 166.5 x 7.8mm
Downloads
Accessories
TF-DD1160-A02
- Infinite Touch Design
