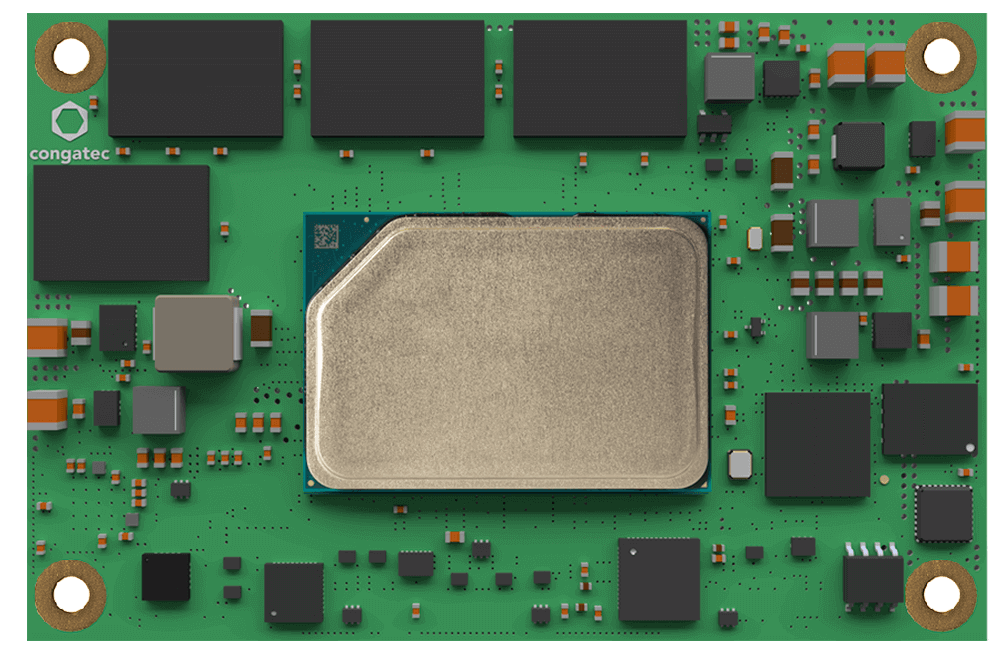

conga-MA7
COM Express® Mini | Elkhart Lake
COM Express® Mini Type 10 Module with Intel® Atom™ x6000E, Pentium® und Celeron® Processor
Features:
- Intel® Atom™Elkhart Lake processor family
- COM Express Mini Type 10 module
- Intel 11th generation graphics
- Variants for extended temperature range
- Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability
Ordering information:
049400 | conga-MA7/x6425E-16G UFS64
049401 | conga-MA7/x6413E-8G UFS32
049402 | conga-MA7/x6211E-8G UFS32
049411 | conga-MA7/i-x6425RE-8G UFS32
049412 | conga-MA7/i-x6212RE-4G UFS32
049420 | conga-MA7/J6425-16G UFS64
049421 | conga-MA7/J6413-8G UFS32
Technical Data
Manufacturer
congatec
Product Series
Computer-on-Module
Product Category
COM Express® Mini
CPU Type
- Intel® Pentium®
- Intel® Atom®
- Intel® Celeron®
CPU
- x6425E
- x6413E
- x6211E
- x6425RE
- x6414RE
- x6212RE
- J6425
- J6413
Chipset
SoC
Memory
max. 16 GByte Dual Channel Onboard DDR3L
TPM
2.0/1.2
Temperature Range Top
- -40...+85°C
- 0...+60°C
Temperature Range Tst
- -20...+70°C
- -40...+85°C
Interfaces
HDMI
I²C
USB 2.0
DisplayPort
UART
Audio
SATA 3.0
PCIe
USB 3.2 Gen1
