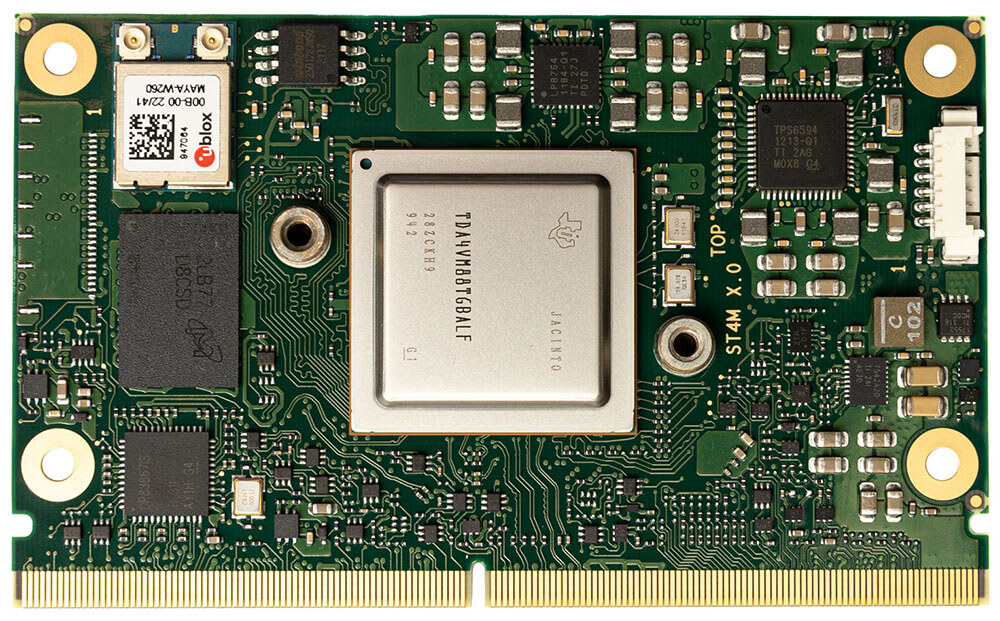

conga-STDA4
The conga-STDA4 is a SMARC module from congatec is based on a TI TDA4VM application processor and a DRA829J Arm® network processor
Features:
- Heterogeneous architecture with two Arm® Cortex®-A72,
- DSP and accelerators for deep learning and multimedia
- Arm® Cortex®-R5F MCUs for real-time outsourcing
communication - Highest reliability for applications in harsh environments
- Industrial temperature range -40°C to +85°C
Ordering information:
- 051510 | congaSTDA4/i-TDA4VM-4G eMMC32
- 051511 | conga-STDA4/i-TDA4VM-2G eMMC32
- 051512 | conga-STDA4/i-DRA829J-4G eMMC32
- 051513 | conga-STDA4/i-DRA829J-2G eMMC32
- 051520 | conga-STDA4/i-TDA4VM-2G eMMC32 MAYA-W160
- 051550 | conga-STDA4/CSP-B
- 051551| conga-STDA4/HSP-B
- 050060 | SMARC/CSA Adapter

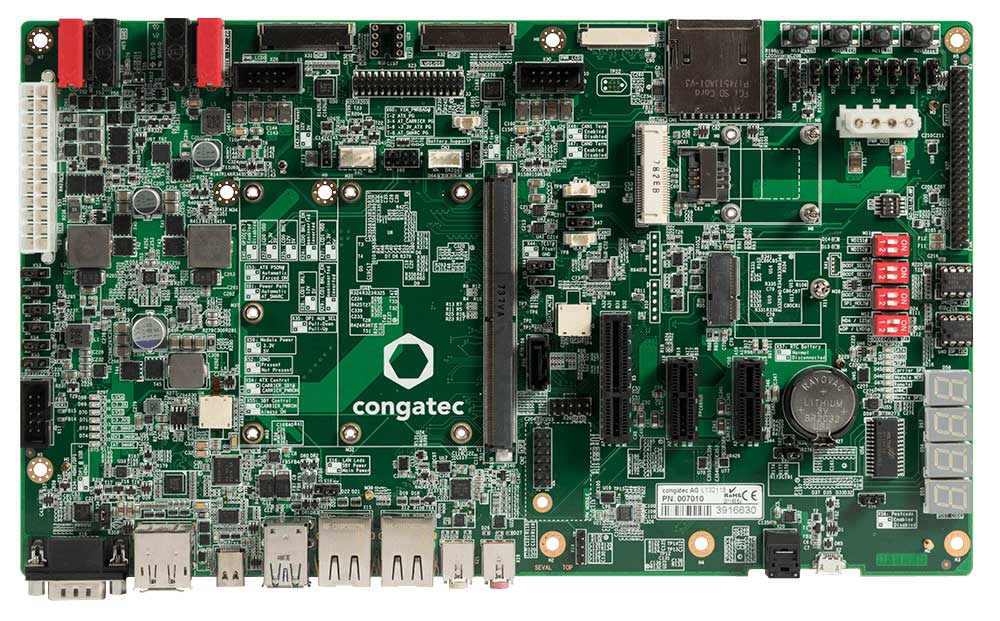

- 007010 | conga-SEVAL

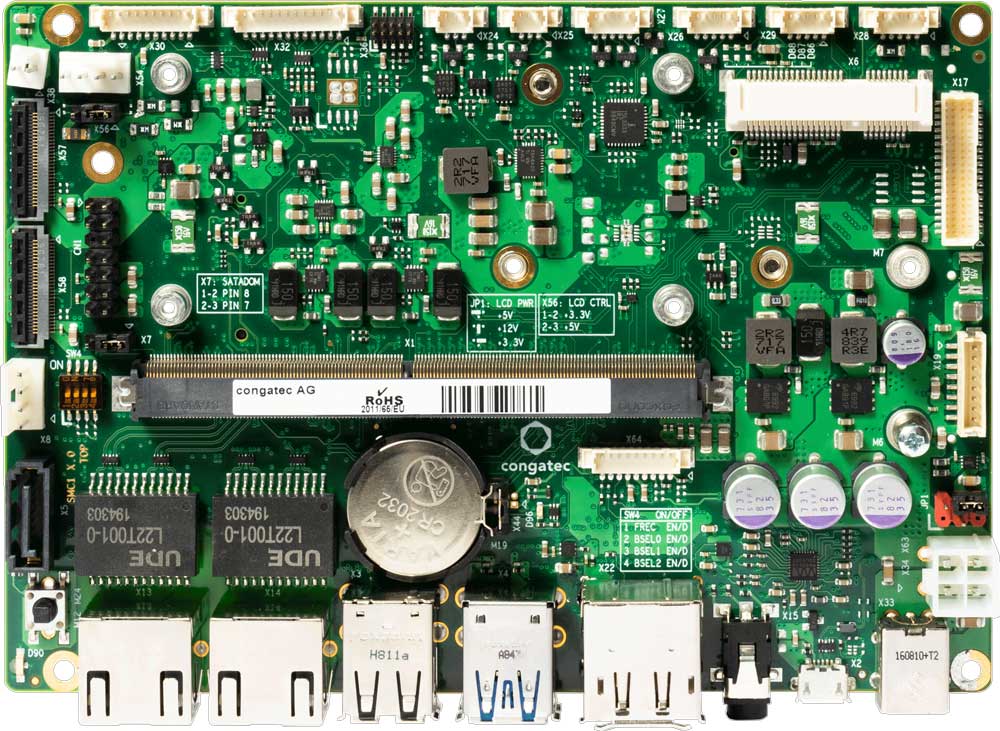

- 020750 | conga-SMC1/SMARC-ARM
Technical Data
Manufacturer
congatec
Product Series
Computer-on-Module
Product Category
SMARC™
CPU Type
ARM®
CPU
Cortex-A72
Memory
max. 8 GB LPDDR4x
Temperature Range Top
-40...+85°C
Temperature Range Tst
-40...+85°C
Interfaces
LVDS
MIPI
I²C
USB 2.0
USB 3.0
GPIO
UART
Watchdog
DisplayPort 1.4
SPI
I²S
SDIO 3.0
PCIe 3.0
MIPI-CSI
eMMC
CAN-FD
Dimensions (LxWxD)
82 x 50 mm
