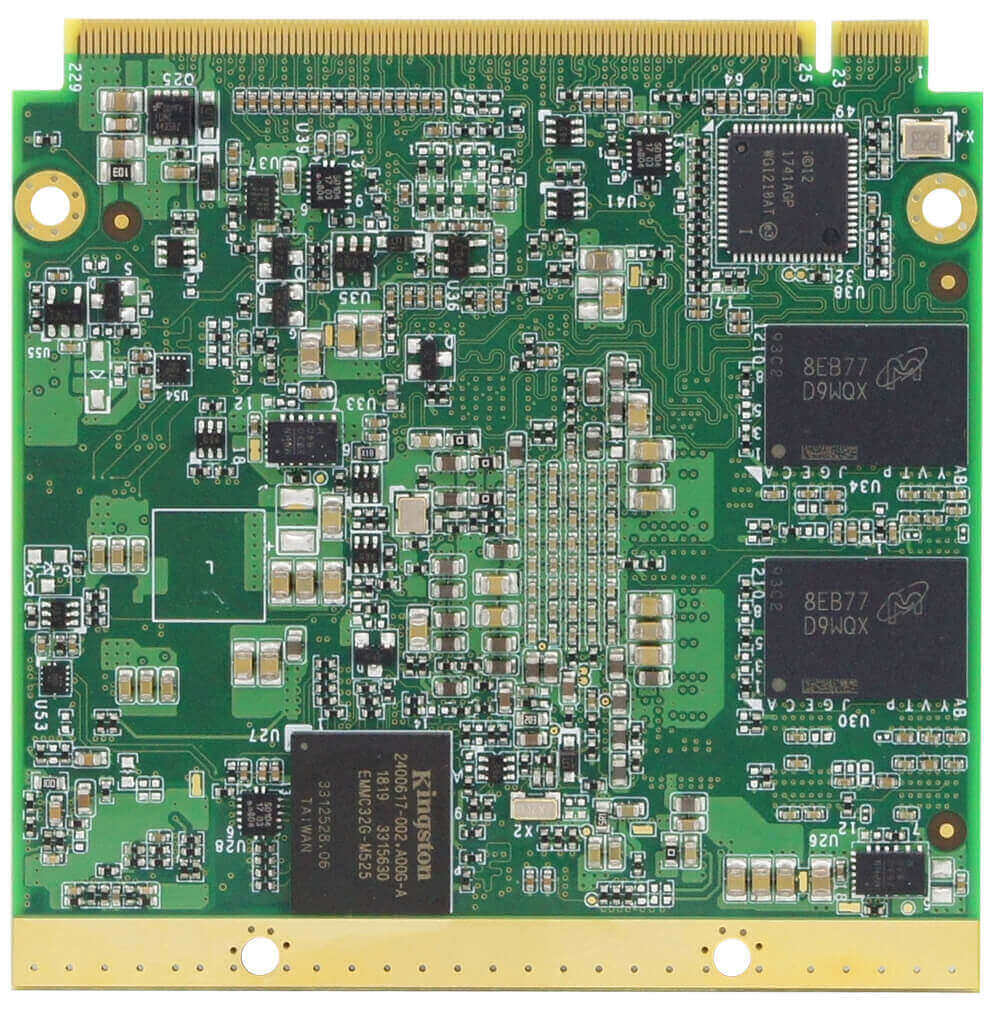

IBQ800
Qseven™ | Apollo Lake
Qseven™ Computer-on-module with Intel®™ Apollo Lake Atom x5-E3930, x5-E3940 or x7-E3950 Prozessor
Features:
- Intel® Atom™ Dual and Quad Core processor on Qseven
- 4 GB LPDDR4 memory onboard
- 1x Intel I210IT PCI-E Gigabit LAN
- Supports TPM 2.0 and optinally eMMC5.0
- Can be used at wide-range temperature
Ordering information:
IBQ800-X5 | E3930, eDP
IBQ800-X5LV | E3930, LVDS
IBQ800-X5Q | E3940, eDP
IBQ800-X5QLV | E3940, LVDS
IBQ800-X7 | E3950, eDP
IBQ800-X7LV | E3950, LVDS
Technical Data
Manufacturer
iBase
Product Series
Computer-on-Module
Product Category
Qseven™
CPU Type
Intel® Atom®
CPU
- E3930
- E3940
- E3950
Chipset
SoC
Memory
4GB LPDDR4 onboard
Temperature Range Top
-40...+85°C
Temperature Range Tst
-40...+90°C
Interfaces
eDP
LVDS
USB 2.0
Gigabit LAN
SATA
PCIe
USB 3.2 Gen1
