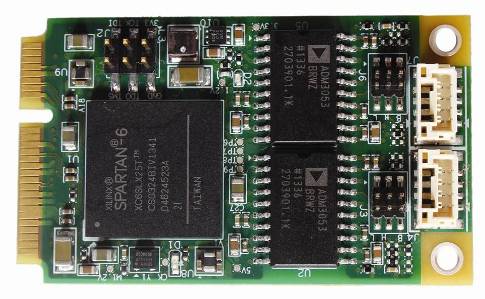

DS-MPE-CAN2L
PCIe MiniCard Extension Card
Rugged and low cost PCIe MiniCard I/O Expansion Module with Dual CANbus Ports ideal for CAN expansion in embedded and OEM applications
Features:
- 2 CAN 2.0B ports
- 1Mbps maximum data rate
- 10 receive buffers for improved performance
- 10 transmit buffers plus 1 high priority transmit buffer
- 10 programmable acceptance filters
- Supports 11-bit and 29-bit identifiers
- 500V port-to-port and input-to-output isolation
- Driver supports dual-independent and dual-redundant modes
- Support for Windows 7, XP, and Linux 2.6.xx
- PCIe MiniCard full size form factor (50.95 x 30mm)
- Operating temperature of -40°C to +85°C
Ordering information:
DS-MPE-CAN2L
Technical Data
Manufacturer
Diamond Systems
Product Series
Embedded Accessory
Product Category
Extension Cards
Function
CAN Bus
Temperature Range Top
-40...+85°C
