IB961

3,5" SBC | Raptor Lake-P

iBASE 3.5" Single Board Computer 13th Gen Intel® Core™ i7/i5/i3 mobile processor (Raptor Lake-P Platform)

Features:

  • Onboard 13th Gen Intel® Core™ i7/i5/i3 mobile processors
  • 1x DDR5 SO-DIMM, Max. 32GB
  • Supports 2x DisplayPort (1.2), LVDS and eDP
  • 2x Intel® PCI-E 2.5G LAN
  • 3x USB 2.0, 3x USB 3.2, 2x COM, 2x SATA III
  • 3x M.2 slots (M-Key + E-key + B-key)
  • Supports 5G, digital I/O (4-in/4-out), fTPM & watchdog timer

Ordering Information:
IB961AF-I7P | 3,5" SBC w. i7-1370PE
IB961AF-I5P | 3,5" SBC w. i5-1340PE
IB961AF-I3P | 3,5" SBC w. i3-1320PE
IB961AF-I5U | 3,5" SBC w. 1335UE
HSIB961-A | Heatsink for IB961
HSIB961-1 | Heatspreader for IB961



IB961 side

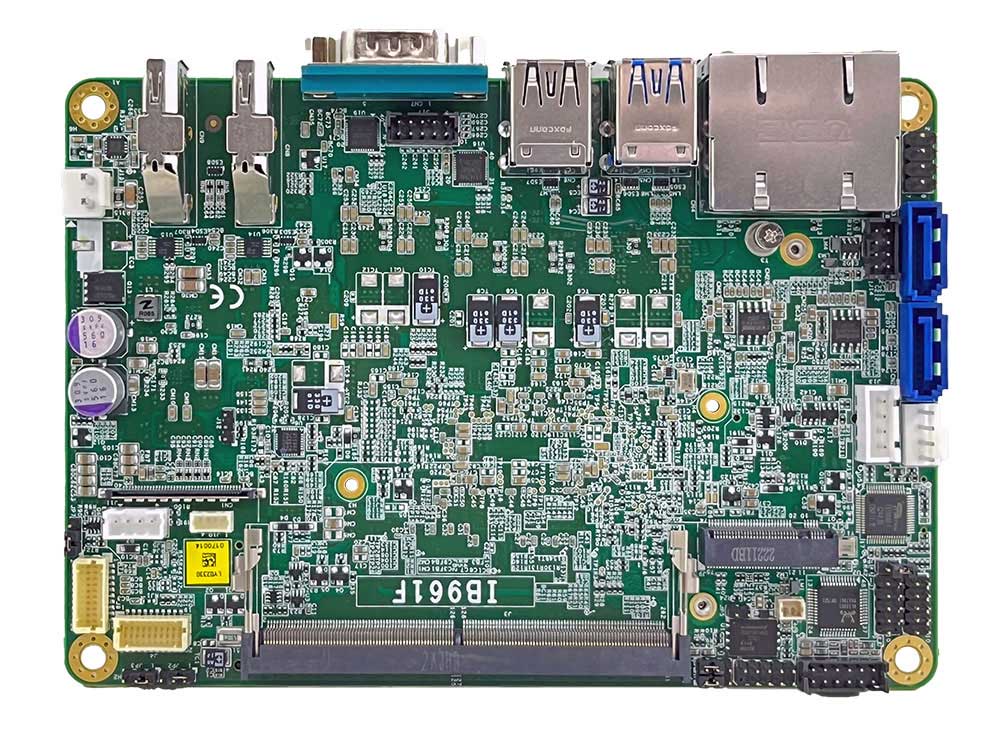

IB961 top view

Technical Data

Manufacturer
iBase
Product Series
  • 3.5" SBC
  • Single Board Computer
CPU Type
Intel® Core™ i
Memory
1x DDR5 5200 SO-DIMM, Max. 32GB
Temperature Range Top
0...+60°C
Temperature Range Tst
-20...+80°C
Interfaces
eDP
LVDS
LAN
USB 2.0
DisplayPort
Audio
COM
SATA
USB 3.2
M.2
