IF422 FFC Adapter + Backlight Driver Board
Internal SAP ID: ZU-02-422
For an easy integration of Ortustech 3.5" and 4.3" TFT displays
Via the IF422 FFC adapter + backlight driver board you can easily connect the Ortustech TFT Displays COM35H3R12ULC, COM35H3P39ULC and COM43H4N90ULC to an LVDS and backlight interface. IF422 features a wide LED input voltage range from 9 to 35V and the backlight converter is integrated on the board.
Complete solutions are available as follows:
COM35H3R12ULC with integrated IF422
COM35H3P39ULC with integrated IF422
COM43H4N90ULC with integrated IF422
Technical Data
Manufacturer
FORTEC Integrated
Product Series
Interface
Converter
TI TPS61158 integriert
Temperature Range Top
-20...+70°C
Temperature Range Tst
-30...+80°C
Inputs
Backlight Hirose DF14-4P-1.25(26)
LVDS Hirose DF14-20P-1.25(26)
Outputs
Panel FFC Hirose FH23-39S-0.3SHW(05)
Dimensions (LxWxD)
61.0 x 35.0 x tbd
Related Products

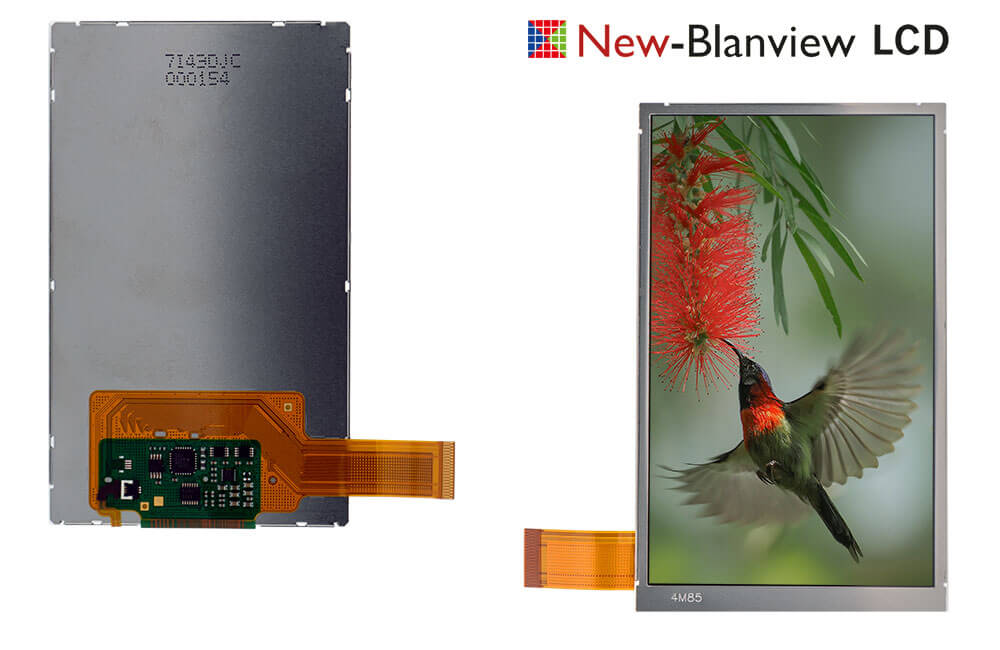

COM43H4M85ULC
