HDBaseT™ Long Distance Multimedia
Do you want to install a multimedia display in a location where you can not set up a PC to control it? Do you have no room for a bundle of cables that could ensure the data transfer and the distance is too far? Then HDBaseT ™ offers the perfect solution to these problems:
![[Translate to English:] HDBaseT™ Long-Distance Multimedia Transmitter und Receiver](/fileadmin/images/produkte/TFT_Controller/Top_Transmitter_Receiver.png "[Translate to English:] HDBaseT™ Long-Distance Multimedia Transmitter und Receiver")
HDBaseT™ is a global connectivity standard that allows for the transmission of high-resolution multimedia signals over longer distances via a single cable. This avoids cable clutter without sacrificing performance or quality. The following signals are transmitted:
2k / 4k HDMI for uncompressed video signal
USB 2.0 for example for a touch screen
Audio (all common formats such as Dolby Digital and HD Master Audio)
PoE (Power over Ethernet) and
Control signals CEC, RS232 / UART
The product consists of a transmitter and a receiver which are interconnected via a CAT.5e UTP Ethernet network cable. Distances of up to 75 meters can be bridged without loss of quality. A 12V power supply (such as NT-01-062) powers the receiver, and via PoE also the transmitter.
Advantages of HDBaseT™
- Commonly used industrial standard
- Cost-effective connection via a single cable
- One cable for 5 signals: Video / Audio, Ethernet, USB 2.0, control signals and power supply
- High resolution long distance solution up to 75m
- Uncompressed and thus lossless signal transmission
- Very low latency
- Easy installation
Please contact us, we will gladly advise you!

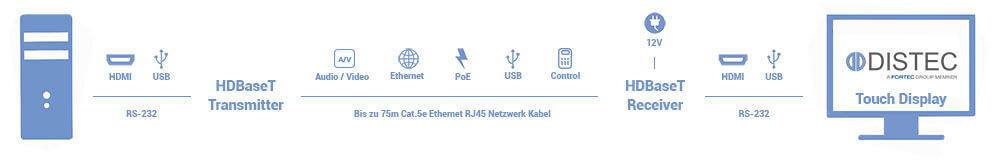

Simplified diagram
![[Translate to English:] Systemschaltbild HDBaseT Long Distance Multimedia](/fileadmin/images/produkte/TFT_Controller/System_Connection_Diagram_DE.jpg "[Translate to English:] Systemschaltbild HDBaseT Long Distance Multimedia")
