PrismaMIPI-HDMI
Internal SAP ID: PA-39-xxx
PrismaMIPI-HDMI is a monolithic TFT controller for connecting MIPI TFT displays to an HDMI interface.
PrismaMIPI-HDMI features:
- HDMI 1.4/2.0
- optional: HDCP 1.4 support
Special features:
- supports Burst Mode and Command Mode
- Resolution up to 1920x1200
- Assembled on one side only for convenient mounting on the TFT Display's back side
- Operating temperature range -20 to +80°C
- HDMI bridge
PrismaMIPI-HDMI can be configured for each TFT display with MIPI interface. For following TFT displays we already have configured versions available:
PA-39-101 Ortustech COM50H5N03ULC / 720x1280 /Blanview
Datasheet PrismaMIPI-HDMI COM50H5N03ULC

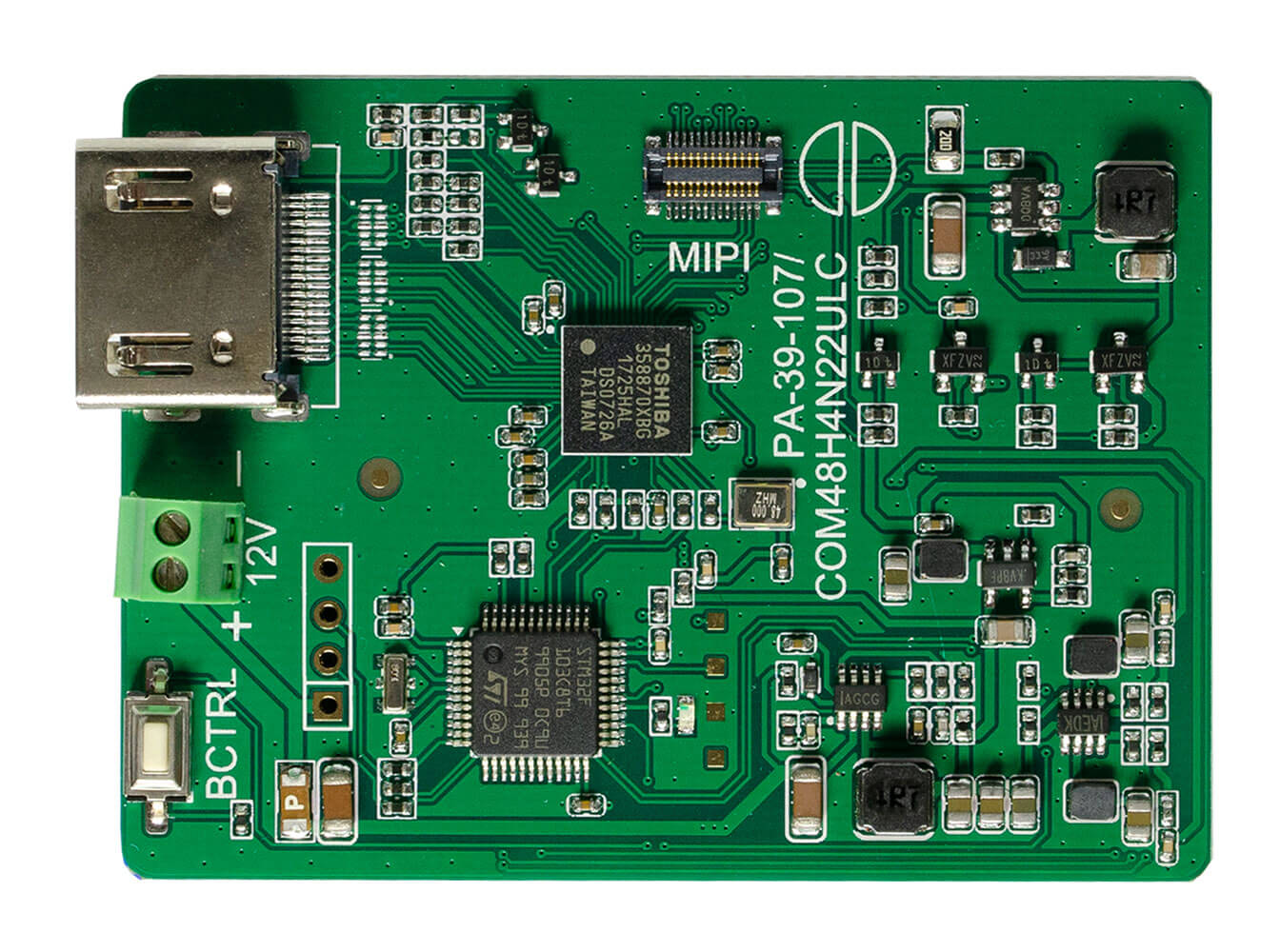

PA-39-107 Ortustech COM48H4N22ULC / 720x1280
Datasheet PrismaMIPI-HDMI COM48H4N22ULC
PA-39-xxx Ortustech COM43H4N66ULC / 480x800
Datasheet PrismaMIPI-HDMI COM43H4N66ULC
Technical Data
Manufacturer
FORTEC Integrated
Product Series
TFT-Controller RGB DVI HDMI DP Video MIPI
Resolution (max)
Full HD / WUXGA
Temperature Range Top
-20...+80°C
Temperature Range Tst
-35...+85°C
Inputs
HDMI
Outputs
MIPI-DSI
