PrismaMOBILITY

Unfortunately our PrismaMOBILITY is EOL. Please visit the sucessor product PrismaMOBILITY-II.

PrismaMOBILITY is a powerful DVI / HDMI (HDCP) controller board for the direct control of LVDS LCD displays up to a maximum resolution of WUXGA (1920x1200).

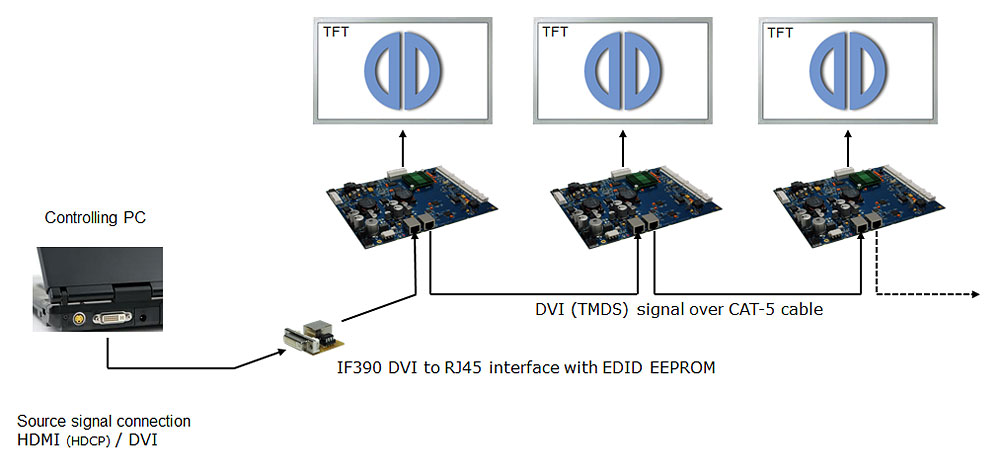

Perfect video streaming for any number of PrismaMOBILITY devices via serial DVI daisy-chaining.


Our PrismaMOBILITY  is particularly suitable for:

• automotive
• railway applications
• industrial production facilities

For all applications which require very high reliability despite of long signal transmission.


Special features:

• Wide input voltage range (+18V…+36V)
• Display Resolution up to WUXGA (1920x1200) (progressive and interlaced)
• Supports HDMI 1.4 (HDCP) / DVI source signals
• DDC/CI functions
• RJ45 connection via low cost CAT 5 cable
• Transfer size at least 30m at full HD resolution
  • at lower resolutions longer transfer sizes possible
• Temperature control with integrated programable sensors
  • switch-on/off temperature conditions
• DVI/HDMI bridge

Optional:

• Ambient light sensor for automatic backlight control (I²C)
• Temperature sensor for monitoring the internal temperature (I²C)
• Interface IF390 DVI to RJ45 (with EDID EEPROM)
• Customized solutions on project basis - please contact us
