AM-800480NGTZQW-01H
Internal SAP ID: AM-10-011

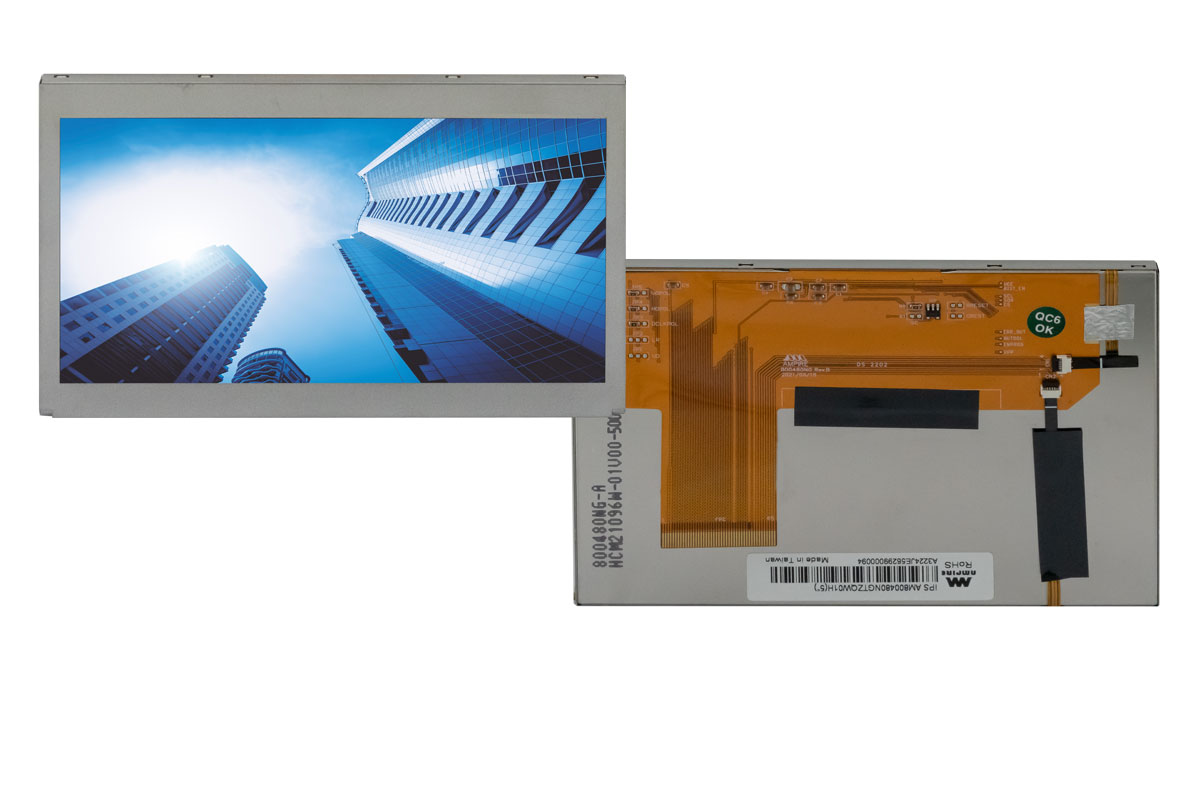

Ampire's AM-800480NGTZQW-01H.5" is a bright 5" TFT display with wide viewing angle and wide temperature range.
With the IF392M interface board you can easily control the display via an LVDS interface. The board also contains the converter for the LED backlight.
Technical Data
Manufacturer
AMPIRE
Technology
TFT
Product Series
- TFT Displays
- High Brightness TFTs
Size Diagonal
05.0" (12.7 cm)
Resolution (max)
0800x480
Brightness [cd/m2]
0900
Contrast
1000:1
Backlight
LED
Viewing angle U/D/L/R
85/85/85/85
Temperature Range Top
- -30...+85°C
- -20...+70°C
Temperature Range Tst
- -30...+80°C
- -35...+85°C
Interfaces
TTL
Format
5:3
Dimensions (LxWxD)
66.8 x 118.5 × 5.3mm
Touch
Optional
