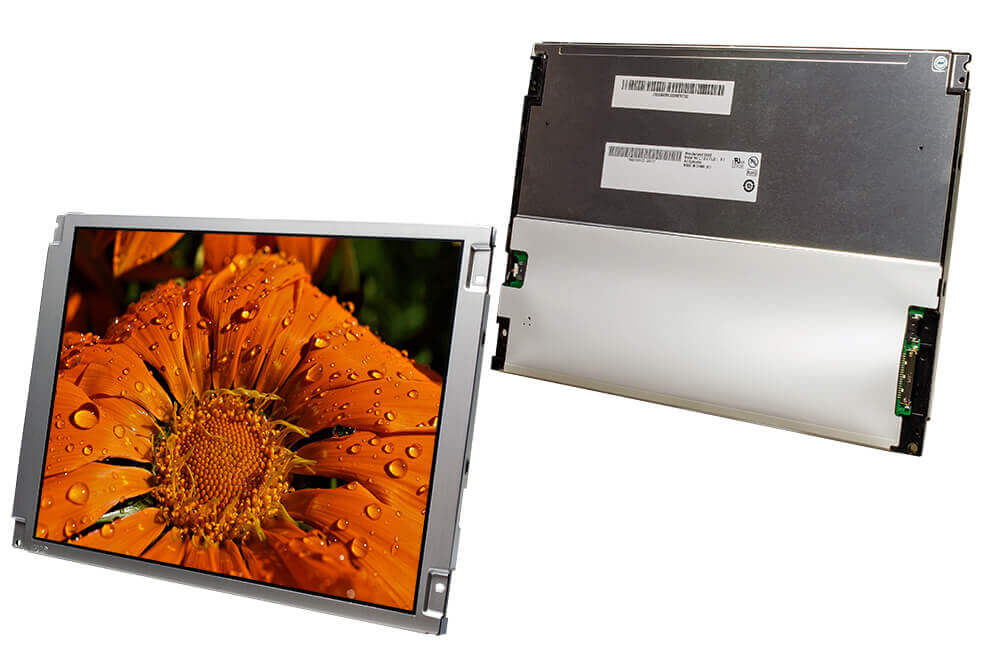

G104VN01V1
Internal SAP ID: UP-02-094
AUO's TFT display G104VN01V1 feature a very wide temperature range and includes the LED backlight driving board.
This display is unfortunately EOL. The successor is the G104VAN01.0.
Technical Data
Manufacturer
AUO
Technology
TFT
Product Series
- Standard Displays
- TFT Displays
Size Diagonal
10.4" (26.416 cm)
Resolution (max)
0640x480
Brightness [cd/m2]
0450
Contrast
0700:1
Backlight
LED
Converter
integriert
Viewing angle U/D/L/R
80/60/80/80
Temperature Range Top
-30...+85°C
Temperature Range Tst
-30...+85°C
Interfaces
LVDS
Format
4:3
Dimensions (LxWxD)
243.0 x 176.6 x 8.0mm
Touch
Optional
