G104XCE-L01
Internal SAP ID: CH-01-070

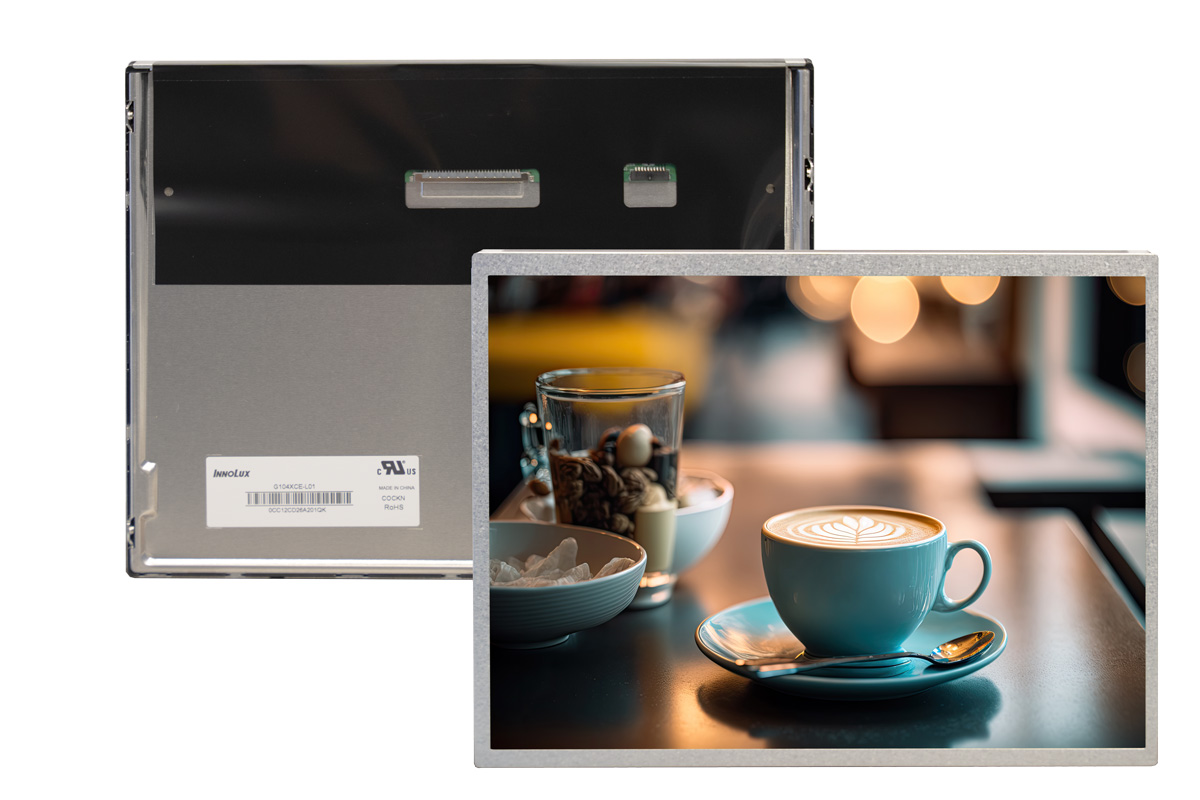

The Innolux TFT display G104XCE-L01 with LED backlight has a large viewing angle and a wide temperature range, as well as an option for 180-degree display rotation.
Technical Data
Manufacturer
Innolux
Technology
TFT
Product Series
- Standard Displays
- TFT Displays
Size Diagonal
10.4" (26.416 cm)
Resolution (max)
1024x768
Brightness [cd/m2]
0500
Contrast
1000:1
Backlight
LED
Viewing angle U/D/L/R
88/88/88/88
Temperature Range Top
-30...+85°C
Temperature Range Tst
-30...+85°C
Interfaces
LVDS
Format
4:3
Dimensions (LxWxD)
226 x 176.8 x 9.2mm
Touch
Optional
Downloads
Accessories
DP104FF005CL092-25
- Infinite Touch Design
