TCG058WXLPBVNN-AN30
Internal SAP ID: KY-01-049

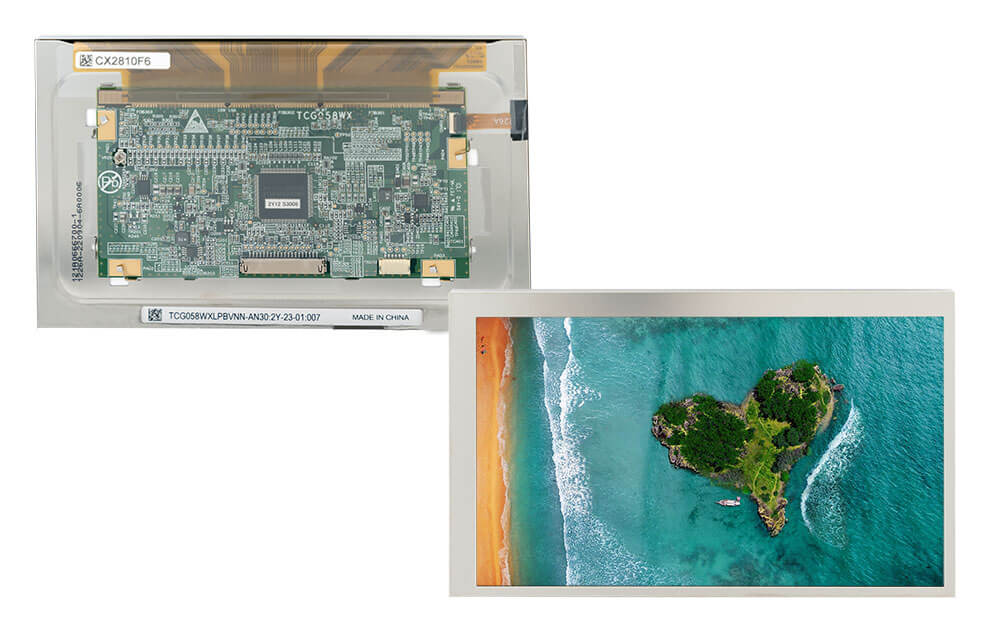

Kyocera's TFT Display TCG058WXLPBVNN-AN30 features a wide temperature range, a wide symmetrical viewing angle and a brightness of 800cd/m². The backlight can be dimmed from 1 to 100% and thus always be perfectly adjusted to the ambient brightness.
Technical Data
Manufacturer
Kyocera
Technology
TFT
Product Series
- TFT Displays
- Standard Displays
Size Diagonal
05.8" (14.732 cm)
Resolution (max)
1280x768
Brightness [cd/m2]
0800
Contrast
1000:1
Backlight
LED
Converter
integriert
Viewing angle U/D/L/R
85/85/85/85
Temperature Range Top
-20...+70°C
Temperature Range Tst
-30...+80°C
Interfaces
LVDS
Format
5:3
Dimensions (LxWxD)
141.29 × 88.5 × 7.49mm
Touch
Optional
