COM48H4N22ULC
transflective
Internal SAP ID: OR-20-011

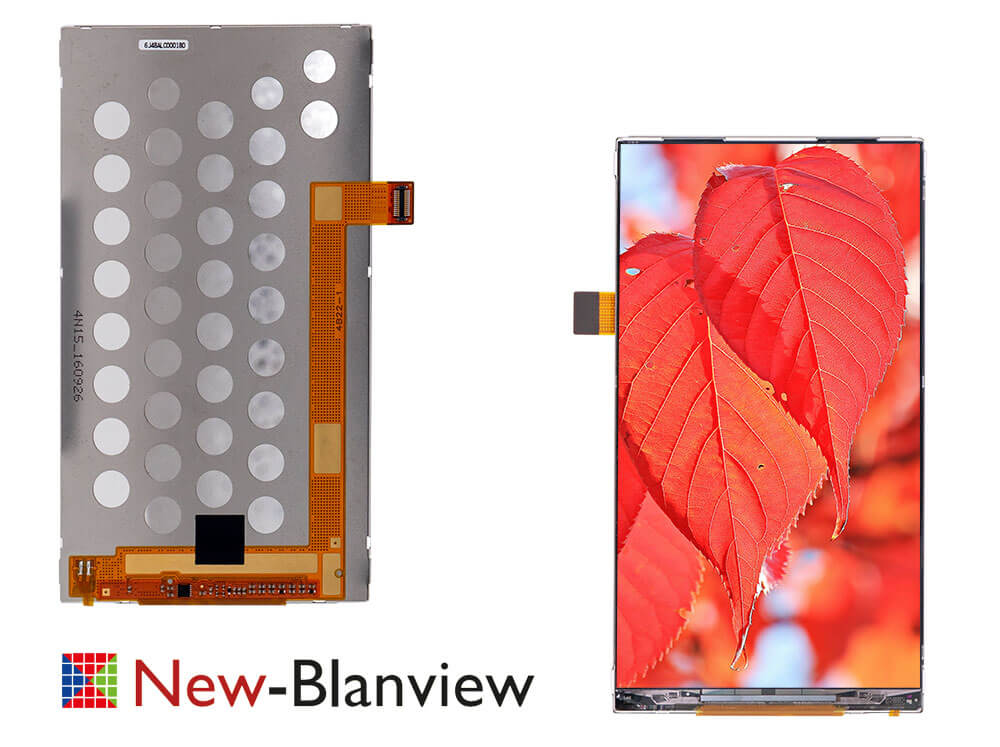

ORTUSTECH's 4.8" TFT display COM48H4N22ULC with New Blanview technology features a low depth and a wide temperature range.

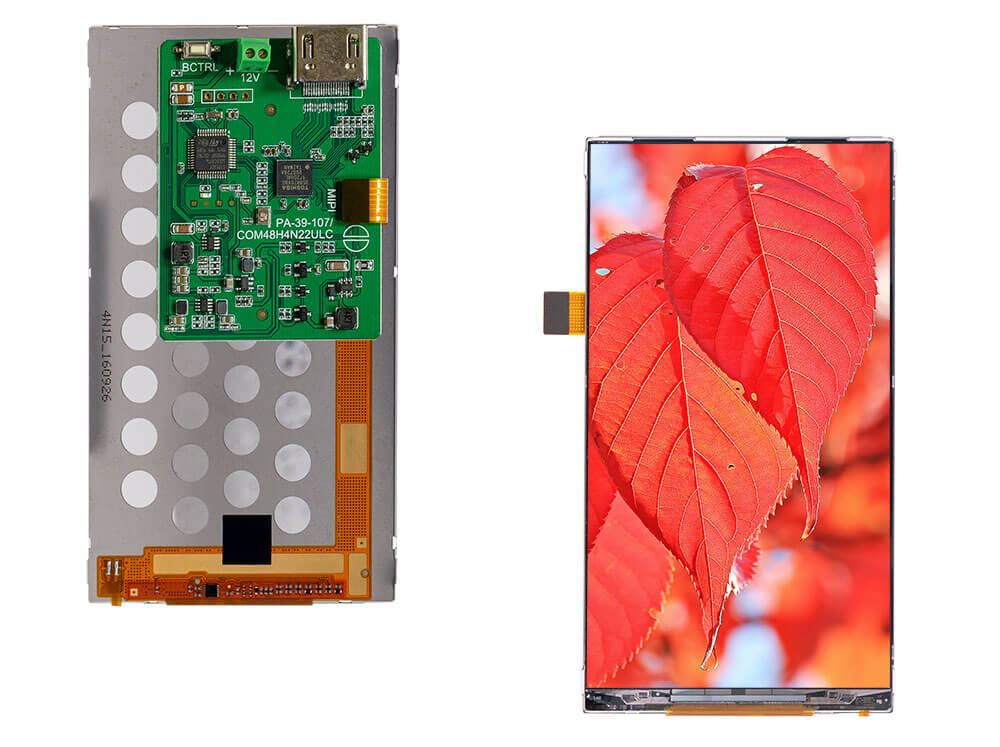

For an easy implementation we offer the PrismaMIPI-HDMI (PA-39-107) and PrismaMIPI-LVDS (on request) TFT controller, which address this display via HDMI respectively via LVDS.
The PrismaMIPI-HDMI also makes it easy to control the TFT display via Raspberry Pi.
Technical Data
Manufacturer
ORTUSTECH
Technology
TFT
Product Series
- TFT Displays
- Transflective TFT Displays
Size Diagonal
04.8" (12.192 cm)
Resolution (max)
0720x1280
Brightness [cd/m2]
0300
Contrast
0700:1
Backlight
LED
Viewing angle U/D/L/R
80/80/80/80
Temperature Range Top
-20...+70°C
Temperature Range Tst
-30...+80°C
Interfaces
MIPI
Format
9:16
Dimensions (LxWxD)
63.68 x 115.51 x 1.67mm
Touch
Optional
Specials
transflektiv
