COM50H5N15ULC
transflective
Internal SAP ID: OR-20-053

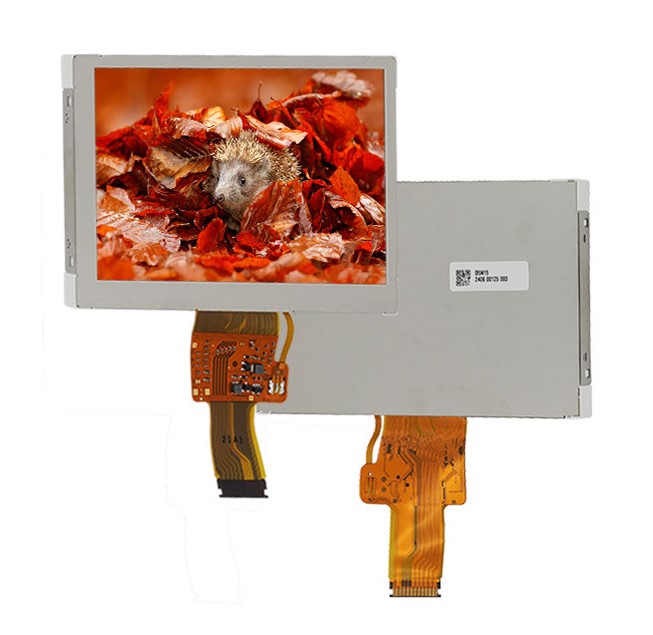

ORTUSTECH's transflective 5" TFT display COM50H5N15ULC is sunlight readable thanks to its Blanview technology, has a very wide temperature range and a wide viewing angle.
For easy control, we developed the Adapter Board IF420-00 with integrated LED converter.

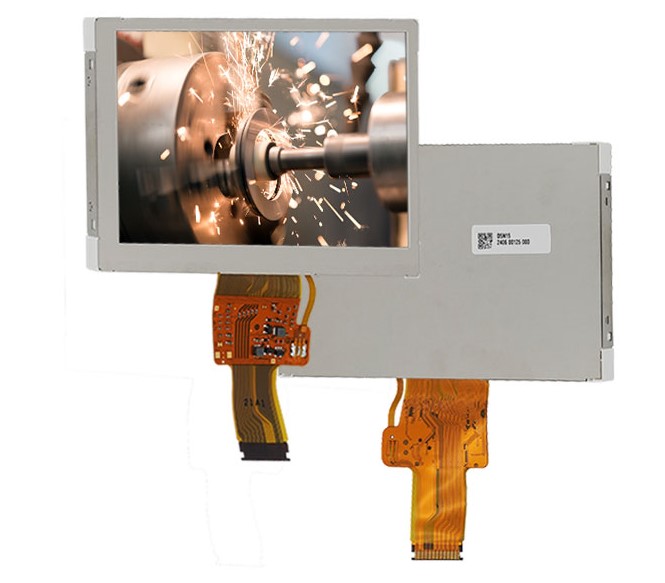

Looking for an even more rugged display? The COM50H5N25ULC is compatible with the COM50H5N15ULC, but additionally vibration resistant up to 6.8 G.
Technical Data
Manufacturer
ORTUSTECH
Technology
TFT
Product Series
- TFT Displays
- Transflective TFT Displays
Size Diagonal
05.0" (12.7 cm)
Resolution (max)
0800x480
Brightness [cd/m2]
0420
Contrast
0700:1
Backlight
LED
Viewing angle U/D/L/R
80/80/80/80
Temperature Range Top
-30...+85°C
Temperature Range Tst
-40...+95°C
Interfaces
LVDS
Format
5:3
Dimensions (LxWxD)
124.00 × 80.82 × 6.18mm
Touch
Optional
Specials
transflektiv
