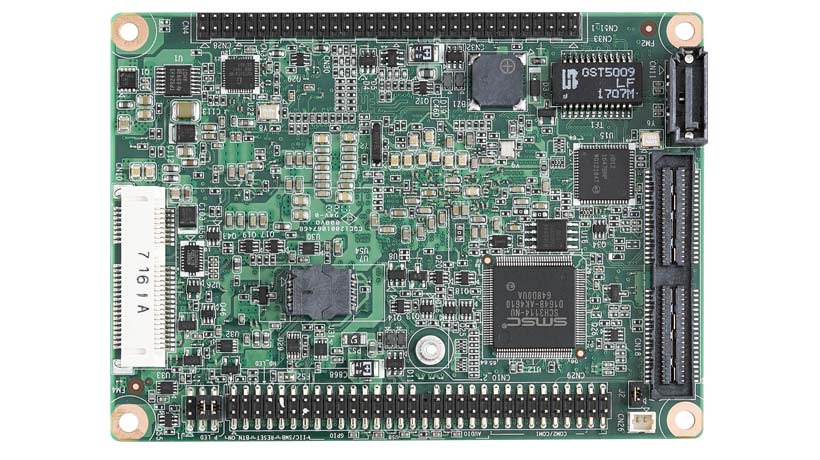

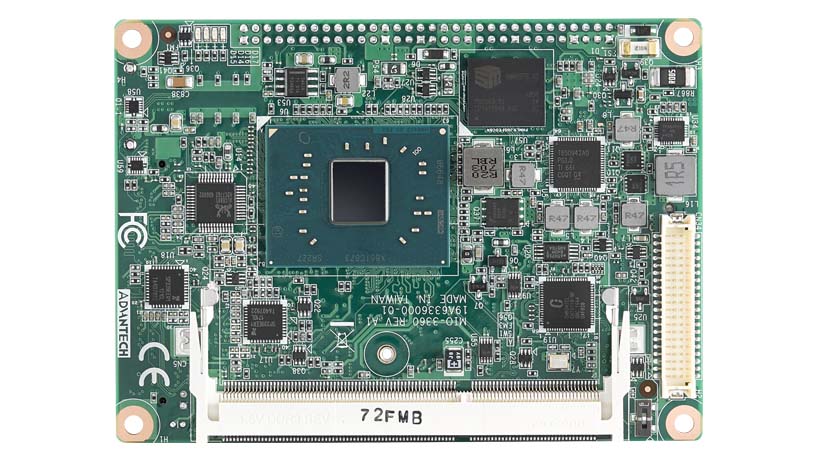

MIO-3360

2.5" Pico-ITX™ | Apollo Lake

2,5" Pico-ITX™ Board from Advantech with Intel® Pentium® N4200 Prozessors and Celeron® N3350 and an extendend temperature range of up to -40°…+85°C.

Features:

  • DDR3L 1866MHz support up to 8BG
  • Dual display: 48-bit LVDS+VGA, DP/HDMI
  • Expansion: Full-size Mini PCIe, eMMC, mSATA*
  • 2x COM, 1x SATA, 4x USB 2.0, MIOe expansion
  • Supports WISE-PaaS/RMM and Embedded Software APIs

Ordering Information:
MIO-3360N-S2A1E | N4200
MIO-3360N-S1A1E | N3350
MIO-3360C-S2A1E | N4200

MIO-3360
MIO-3360

Technical Data

Manufacturer
Advantech
Product Series
Single Board Computer
Product Category
2,5" Pico-ITX™
CPU Type
  • Intel® Pentium®
  • Intel® Celeron®
CPU
  • N3350
  • N4200
Chipset
SoC
Memory
max. 8GB DDR3L
Temperature Range Top
0...+60°C
Temperature Range Tst
-40...+85°C
Interfaces
LVDS
HDMI
I²C
USB 2.0
USB 3.0
Line-in
Line-out
RS232/422/485
VGA
DisplayPort
GPIO
mSATA
PCIe
SMBus
Power Supply
12V
