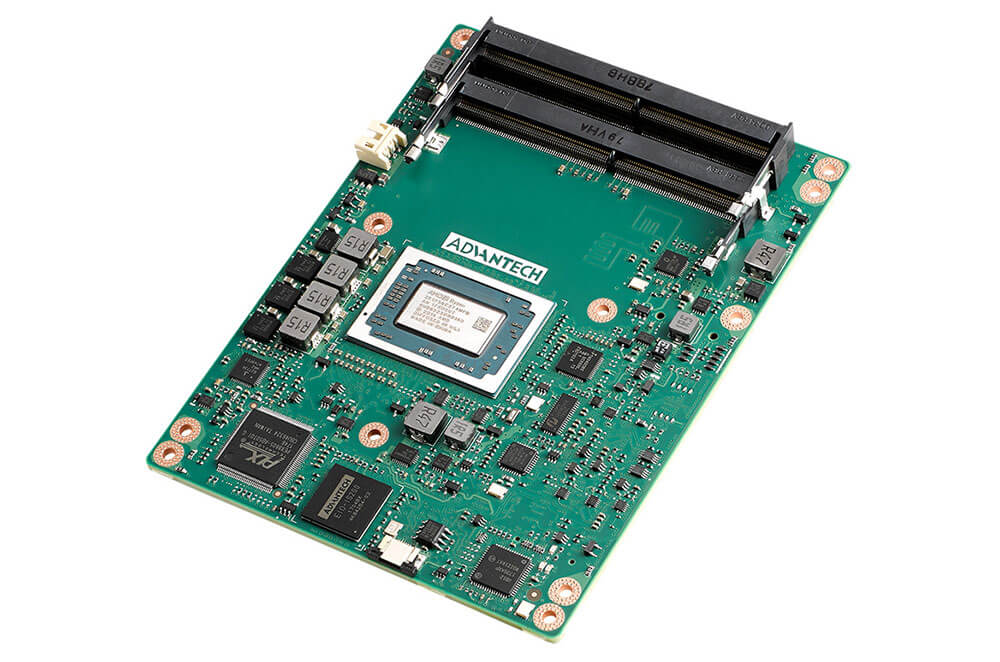

SOM-5871

COM Express® Basic | Ryzen® V1000

Computer-On-Module COM Express™ Basic Type 6 R3.0 Module from Advantech with AMD® Ryzen™ V1000 processor family

Features:

  • Dual channel DDR4, Max 32GB (both ECC & non-ECC)
  • Supports quad independent symmetrical displays (4 x 4K displays)
  • Multiple I/O interfaces - 1 x PEG PCIex8, 6 x PCIe x1, 2 x SATA, 2 x USB 3.1 Gen2, 1 x USB 3.1 Gen1, 8 x USB 2.0, 2 x COM, TPM
  • Supports iManager, WISE-PaaS/DeviceOn and embedded software APIs

Ordering information:

SOM-5871VC-H3A1 | V1807B
SOM-5871VC-H2A1 | V1756B
SOM-5871VC-U0A1 | V1605B
SOM-5871VC-U3A1 | V1202B
SOM-5871VCX-U1A1 | V1404I

SOM-5871 Advantech COM Express Basic

Technical Data

Manufacturer
Advantech
Product Series
Computer-on-Module
Product Category
COM Express® Basic
CPU Type
AMD® Ryzen™
CPU
  • V1202B
  • V1605B
  • V1807B
  • V1756B
  • V1404I
Memory
max. 32GB DDR4
TPM
2.0
Temperature Range Top
  • -40...+85°C
  • 0...+60°C
Temperature Range Tst
-40...+85°C
Interfaces
eDP
LVDS
HDMI
I²C
USB 2.0
DisplayPort
DVI
GPIO
Audio
SATA 3.0
COM
PCIe
Watchdog
SMBus
USB 3.2 Gen1
Power Supply
8.5 - 20V
