IP6X 7.0 HB Touch
Internal SAP ID: MO-01-131

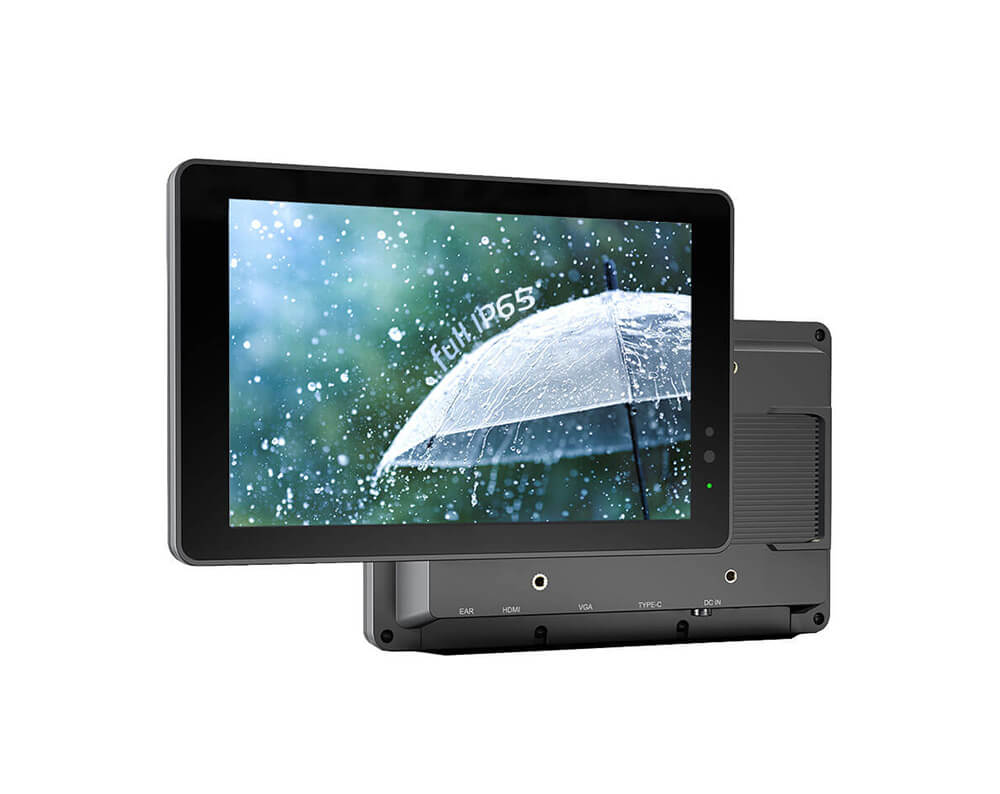

The IP6X 7.0 monitor is a robust, small high-bright monitor. The housing is sealed all around in accordance with the IP65 standard and is made of black plastic. In combination with its durable and long-term available components, it is ideally suited for harsh environments and demanding industrial applications.
- high sensitivity 10-finger PCAP touchscreen
- Automatic dimming according to ambient brightness

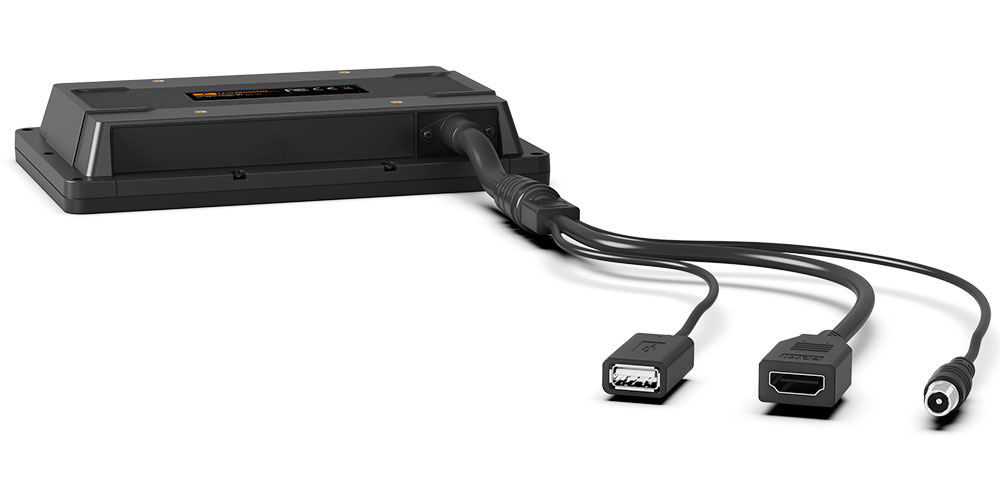

- Robust extension cable
- VESA 75
- 2 mounting brackets for wall mounting
Technical Data
Manufacturer
FORTEC Integrated
Technology
TFT
Product Series
- IP6X-series
- Monitore
Product Category
- IP protected monitors
- Touch Monitors
- High Brightness Monitors
Size Diagonal
07.0" (17.78 cm)
Resolution (max)
1280x800
Brightness [cd/m2]
1000
Contrast
0800:1
Viewing angle U/D/L/R
170°/170°
Temperature Range Top
-20...+60°C
Temperature Range Tst
-30...+80°C
Interfaces
HDMI
USB-A
Power Supply
9-36V
Format
16:10
Dimensions (LxWxD)
184.5 x 118.8 x 32 mm
Touchpoints
10
