COM70H7M24ULC

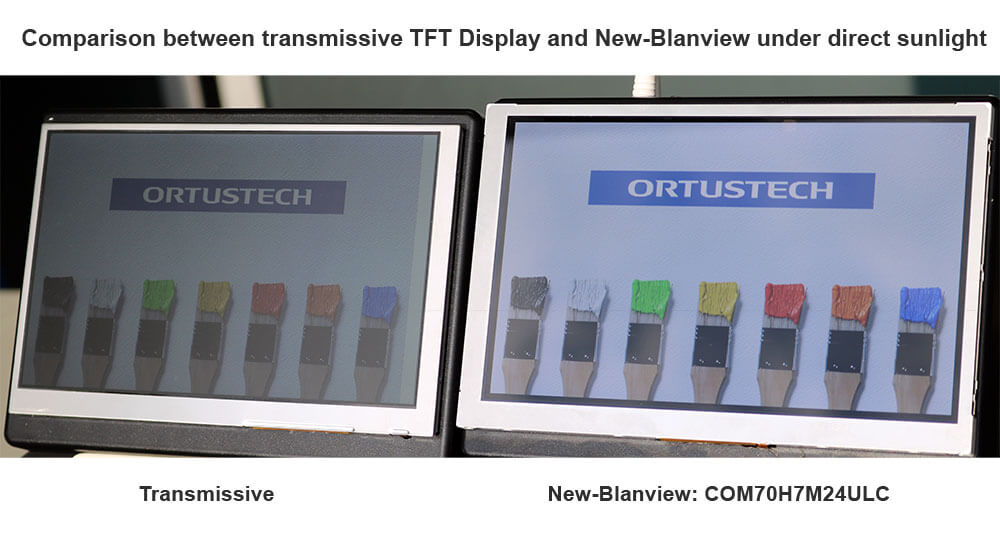

Ortustech's  7" (17,78 cm) TFT display COM70H7M24ULC is transflective and features a 30% reduced power consumption compared to transmissive technology. Moreover it provides best sunlight readability due to the improved New Blanview technology.

The display features a brightness of typ. 400 cd/m² but a max. brightness of 790cd/m² is possible.

The COM70H7M24ULC is suitable for outdoor use and for very harsh environments such as construction or agricultural machinery because of a high vibration resistance of up to 6.8 G and a very wide temperature range.

Due to its high resolution the display feature a very detailed image. The lifetime of the LED backlight is 100,000 hours ( mean time to half bightness).

This dispay is optionally available with an assembled touch screen.

For easy control, we developed the Adapter Board IF420-00 with integrated LED converter. A kit solution of display and IF420-00 is available (part no. OR-03-001).
