NL10276AC30-53D

Internal SAP ID: NL-01-023

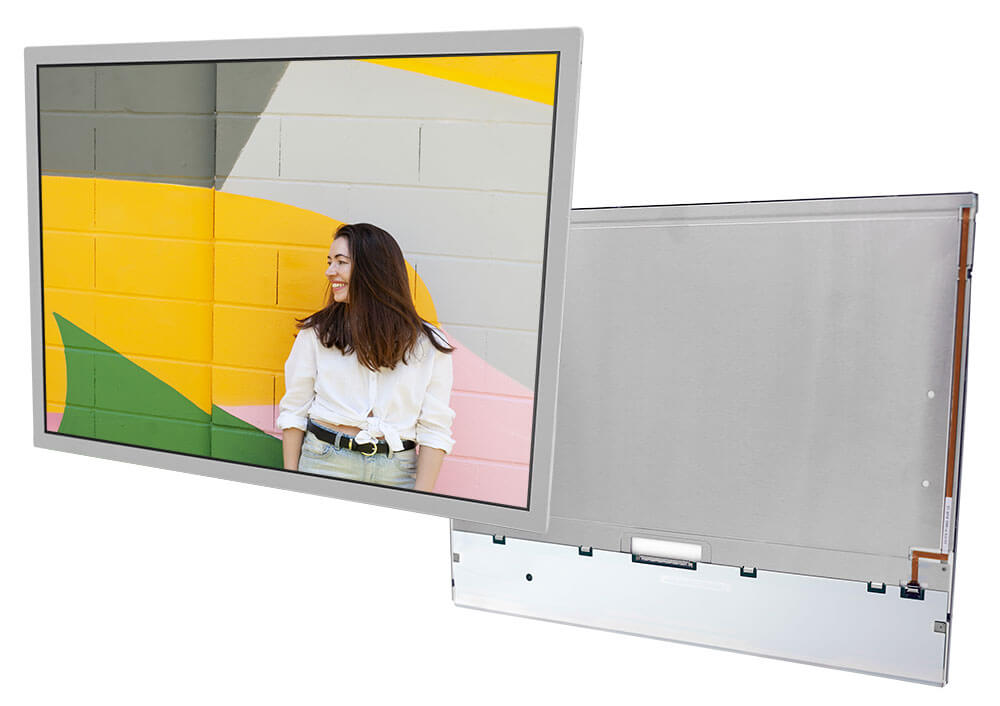

Tianma's 15" TFT display NL10276AC30-53D features a wide viewing angle and an extended temperature range and includes the LED backlight driving board.

Technical Data

Manufacturer
Tianma
Technology
TFT
Product Series
  • Standard Displays
  • TFT Displays
Size Diagonal
15.0" (38.1 cm)
Resolution (max)
1024x768
Brightness [cd/m2]
0500
Contrast
1000:1
Backlight
LED
Converter
integriert
Viewing angle U/D/L/R
80/80/80/80
Temperature Range Top
-20...+70°C
Temperature Range Tst
-20...+70°C
Interfaces
LVDS
Format
4:3
Dimensions (LxWxD)
326.5 x 253.5 x 6.3mm
