POS-IQ-156-00-PRO

Internal SAP ID: MO-06-109

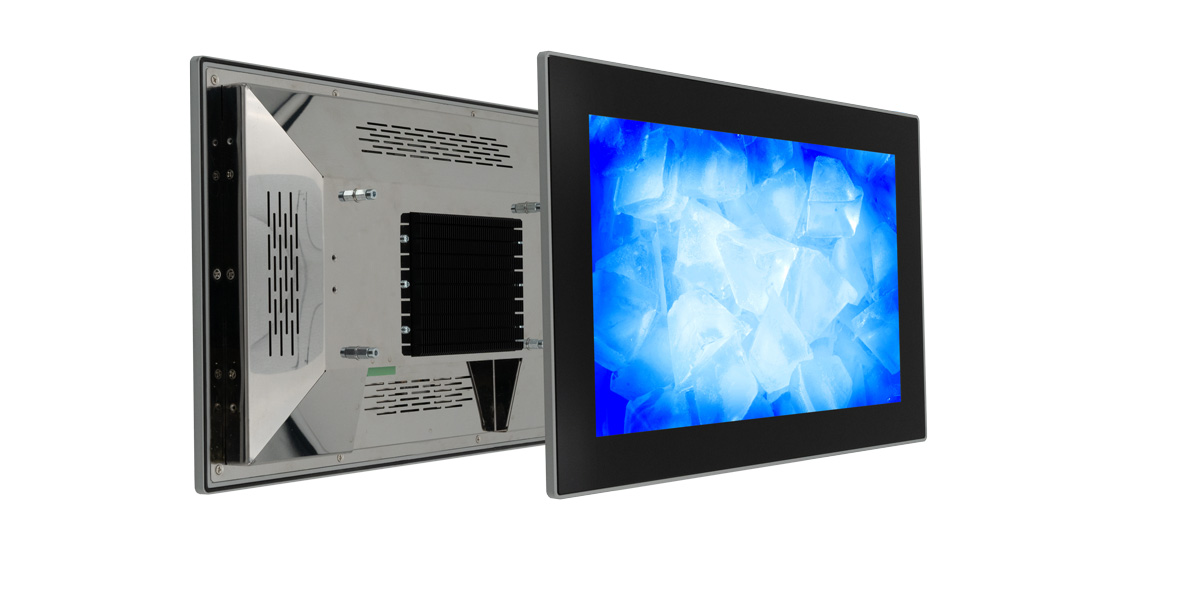

The POS-IQ-156-00-PRO from Fortec Integrated is a CE certified 15.6” panel PC with full-HD resolution (1920x1080), featuring the IB811F-420 single board computer by iBASE. The monitor features a 10 finger PCAP touchscreen and the integrated passive cooling allows for operating the system under full load even at high ambient temperatures. The robust but slim housing with IP65 proof front can be integrated quickly and easily in various applications. Due to its 64bit x86 PC with IIntel® Pentium® N4200 processor the long-term available POS-IQ-156-00-PRO is the perfect platform for projects requiring high computing power as well as high-quality workmanship.

This panel PC is also available with preinstalled Android 13 operating system. Benefit from the high computing power of the x86 architecture and at the same time from the regular updates as well as the customization and remote management options of Android 13:

  • Customizable branding and personalized boot animations
  • CI/CD pipelines automate the creation of updated Android versions, distributing operating system and app changes via Over-The-Air (OTA) updates.
  • Advanced features such as kiosk mode, remote device access (MDM), app management, and screen mirroring
  • Extended long-term support and regular security updates


Read more.

MO-06-109
MO-06-109

Technical Data

Manufacturer
FORTEC Integrated
Technology
TFT
Product Series
  • PRO-series
  • Digital Signage
  • Industry
  • Retail
Product Category
  • Panel PCs
  • IP protected monitors
  • Touch Monitors
Size Diagonal
15.6" (39.624 cm)
Resolution (max)
1920x1080
Brightness [cd/m2]
0320
Contrast
1000:1
Backlight
LED
Converter
integrated
Viewing angle U/D/L/R
88/88/88/88
Controller
Intel® Pentium
Memory
4 GB DDR 3L RAM | 64 GB M.2 SATA
Temperature Range Top
0...+50°C
Temperature Range Tst
0...+60°C

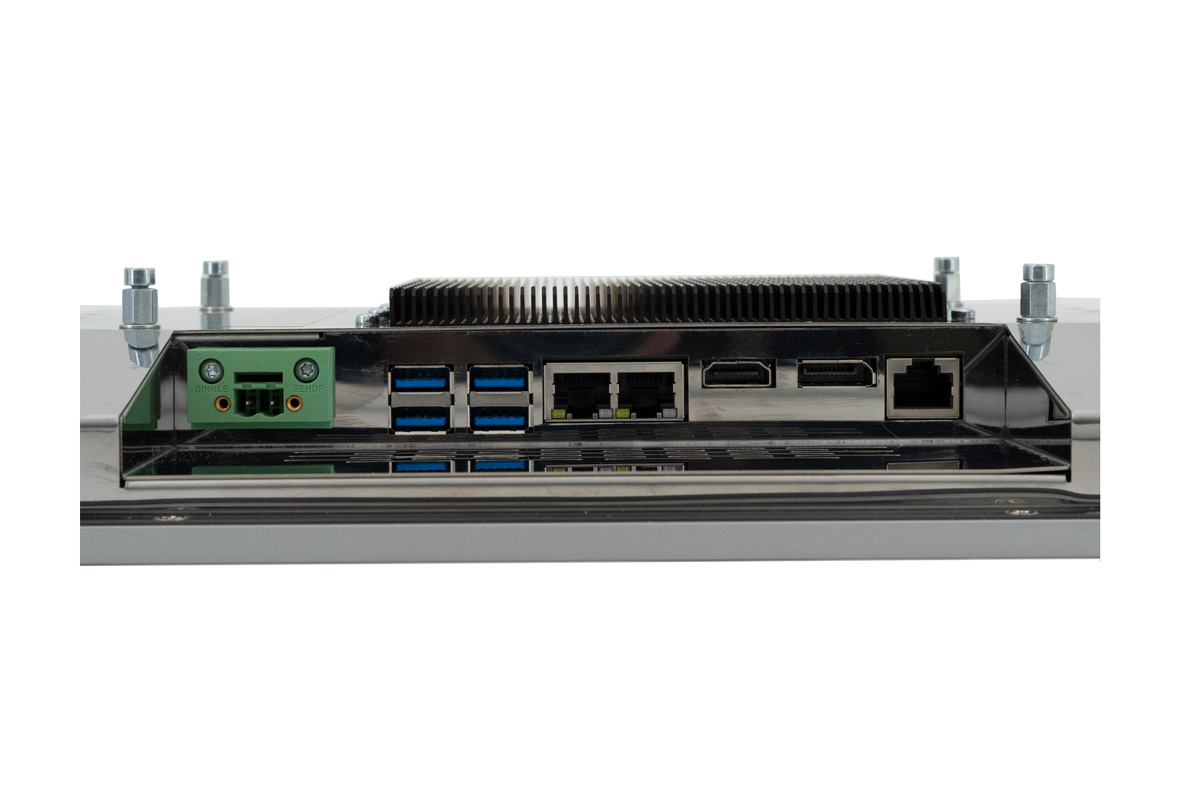

Interfaces
HDMI
USB 3.0
DisplayPort
Gigabit LAN
Power Supply
12 - 24V
Dimensions (LxWxD)
367 x 233 x 49mm
Touch
Yes
Touchpoints
10
Housing
Front IP65

Options

Mounting Frame
